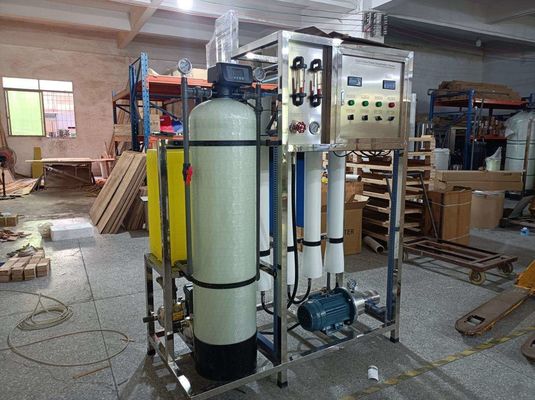

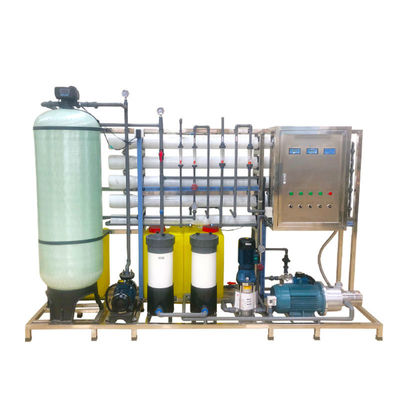

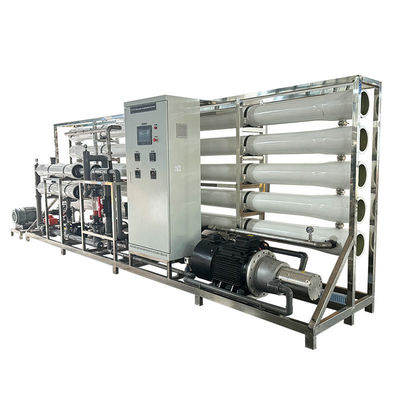

20t/d Seawater Desalinator Desalination High Salt Rejection Drinking Water Treatment Plant Cheap Water Treatment Equipment

  • 20t/d Seawater Desalinator Desalination High Salt Rejection Drinking Water Treatment Plant Cheap Water Treatment Equipment
  • 20t/d Seawater Desalinator Desalination High Salt Rejection Drinking Water Treatment Plant Cheap Water Treatment Equipment
  • 20t/d Seawater Desalinator Desalination High Salt Rejection Drinking Water Treatment Plant Cheap Water Treatment Equipment
  • 20t/d Seawater Desalinator Desalination High Salt Rejection Drinking Water Treatment Plant Cheap Water Treatment Equipment
Place of Origin China
Brand Name Yanjiang
Certification CE、ISO
Model Number 05
Minimum Order Quantity Need to negotiate
Price $7500.00
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 Sets Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Productivity 1000L/Hour
Weight (kg) 788 Power 5KW
Core Components Pump Filter Tank SUS316 Stainless Steel
Leave a Message
Product Description

20t/d Seawater Desalinator Desalination High Salt Rejection Drinking Water Treatment Plant Cheap Water Treatment Equipment



Product description:



Water is not only an indispensable substance for all life in the world, but also an important natural resource that cannot be replaced. In recent years, many countries and regions in the world arise water resources crises. For this reason, countries all over the world are actively studying seawater desalination problems. Reverse osmosis RO technology has become the main seawater desalination technology because of its stable and reliable engineering and low cost, and has been widely used.



This desalinization system design is based on the bellow factor.
* water quality :
* The customer's requirement of the output water quality and output water capacity
* The reliability of the design of the process
* The system can change the water quality steadily
* The easy operation and automatic operation
* Investment and operation cost
* The physical and chemical cleaning function of the system
* The output water quality stability
* The reliable on line monitor function

Design basis
The technical design in the quotation is in order to meet the below requirement :
* raw water quality : sea water , no water quality report
* Output water application :Sea water desalinization
* Sea water desalinization system output water production capacity: 10000L/D (based on 25℃)
* Sea water desalinization system output water TDS ≤750mg/L (raw water TDS≤35000mg/L , desalination rate is about 97% )

S/N
Commodity name
Description/Application
Remark
1
Raw water tank
Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system
Customer provide for themselves, because big size will result in expensive freight.
2
Raw water pump or called booster pump
Provide needed pressure for every pretreatment filter
We can provide CNP pumps or Grundfos pumps
3
Mechanical filter or called quartz sand filter or sand filter
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
We use China brand or WAVE CYBER brand
6
Antiscalant dosing system or PH regulating system
Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range.
Italy SEKO dosing pump or German Prominent
7
Security filter or pp filter, or called PP sediment filter
prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm
Stainless steel housing or PVC housing
8
High pressure pump
Provide needed working pressure for RO system, ensure production capacity of pure water.
CNP pump, Grundfos optional
9
RO(reverse osmosis) system
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
RO membranes USA Filmtec Dow
10
CIP cleaning system
Cleaning RO membranes with chemicals
CNP pumps
11
Sterilizer device
UV sterilizer or ozone generator
BNP ozone machine, USA Hanovia UV bulb

20t/d Seawater Desalinator Desalination High Salt Rejection Drinking Water Treatment Plant Cheap Water Treatment Equipment 0

Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.



FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
