Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant

  • Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant
  • Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant
  • Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant
  • Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant
Place of Origin China
Brand Name Yanjiang
Certification CE、ISO
Model Number 09
Minimum Order Quantity Need to negotiate
Price Need to negotiate
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2 Sets Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Hotels, Manufacturing Plant, Food & Beverage Factory, Farms Warranty Of Core Components 1 Year
Core Components Pump, Motor, Fan Application Water Treament
Type Water Filter Parts Keyword Grid Slag Cleaning Machine
Highlight

tooth grid cleaning machine

,

professional grid cleaning machine

,

professional water treatment machine
Leave a Message
Product Description

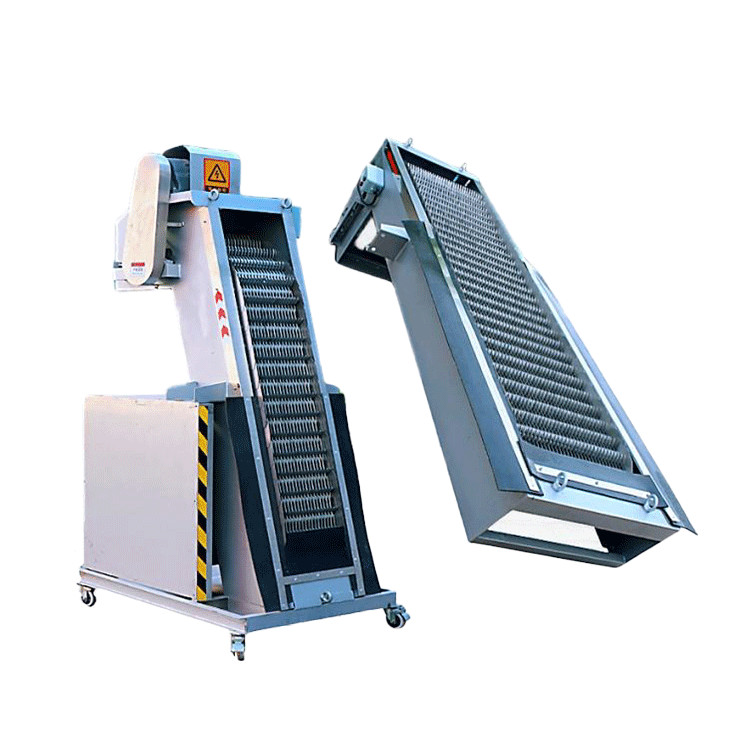

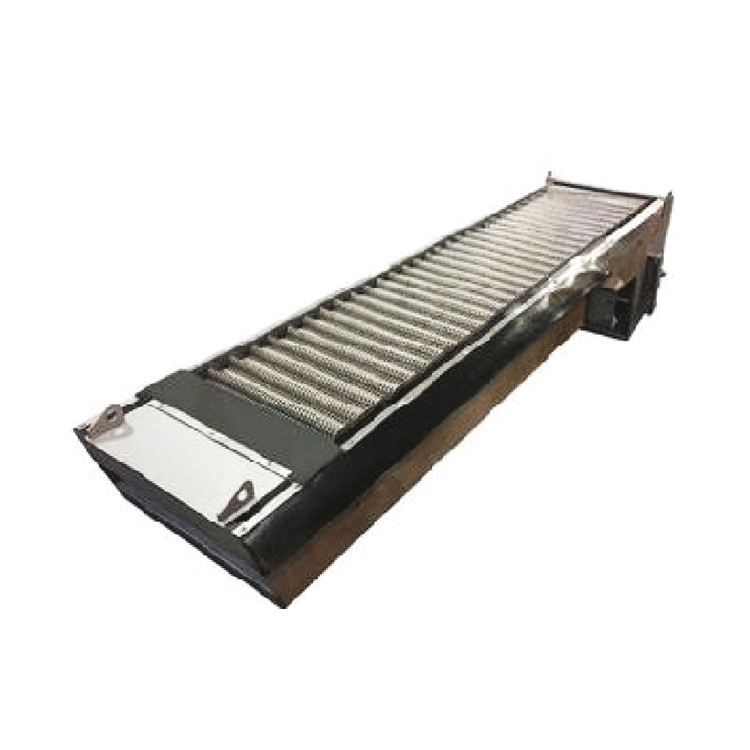

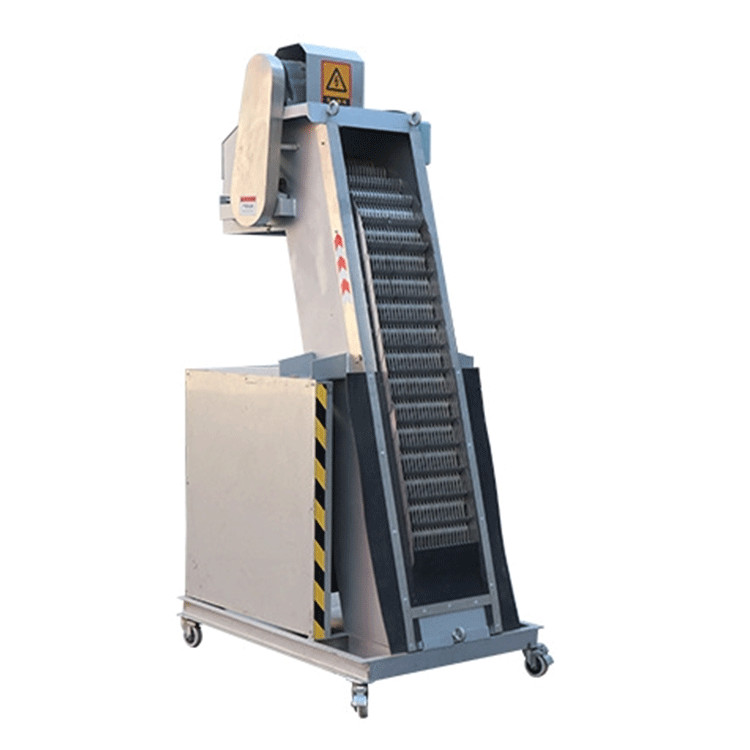

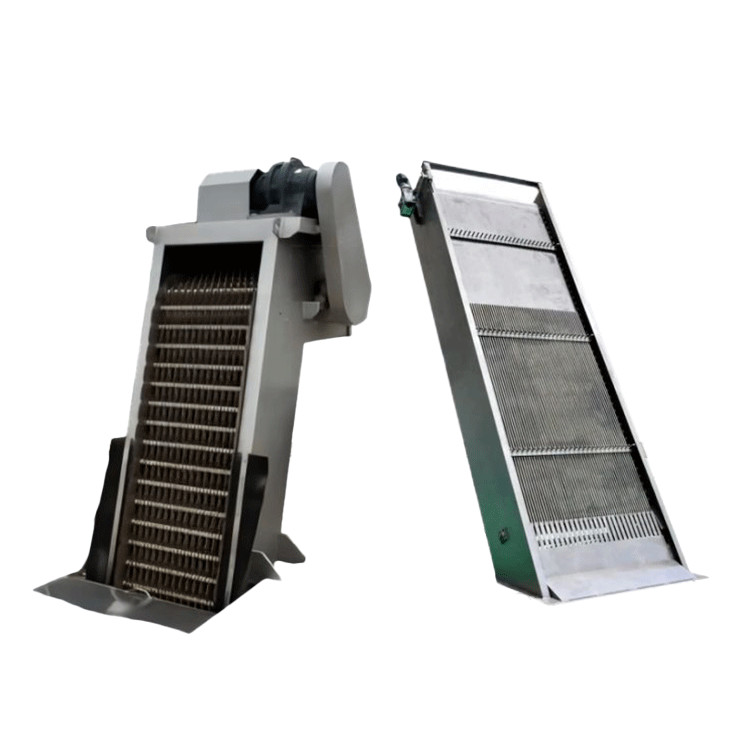

High Quality Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant



Product description:

The rotary grid decontamination machine is one of the main products of the complete set of decontamination equipment for water supply and drainage pretreatment. At present, it is the most advanced device that can continuously and automatically remove various shapes of debris in the liquid and for the purpose of solid-liquid separation.

It is widely used in the pretreatment of rain and sewage in urban and planning areas. Removal of floating matter from surface water intakes such as waterworks, power plants and steel mills; Slaughtering, medicine, papermaking, chemical fiber, textile, dyeing and other industrial wastewater debris separation; Screening of raw wool and wool washing industry recycling; Water washing or residue separation in aquatic fruit and grain processing technology.

Main feature

1. The tooth rake chain goes down after the chain, and the grid bar goes up before the dregs, which will not bring the scum into the water and dregs thoroughly.

2, fully enclosed transmission chain, no winding.

3, mechanical and electrical double overload protection, safe and reliable.

4. Compact structure. Buffer discharge slag, overload protection. Material attention, wear resistance, reliable work, and can be fully automatic operation.



Model number YJGS-300 YJGS-400 YJGS-500 YJGS-600 YJGS-700 YJGS-800 YJGS-900 YJGS-1000 YJGS-1100 YJGS-1200 YJGS-1250 YJGS-1500
Mounting Angle α 60°-80°
Motor power(kw) 0.35-0.75 0.55-1.1 0.75-1.5 1.1-2.2 1.5-3
Rake chain line speed(m/min) ≈2
Equipment widthB(mm) 300 400 500 600 700 800 900 1000 1100 1200 1250 1500
Equipment heightH2(mm) 3285-14350
Total width of equipment B2(mm) 650 750 850 950 1050 1150 1250 1350 1450 1550 1600 1850
Groove widthB3(mm) 400 500 600 700 800 900 1000 1100 1200 1300 1350 1600
Ditch depthH(mm) 500-12000
Maximum temperature of medium(°C) ≤80°C
Base to top of discharge H1(mm)

400-1000





Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant 0Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant 1Professional Stainless Steel Tooth Grid Cleaning Machine For Sewage Treatment Plant 2

Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.



FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
