Automatic Sludge Dewatering Screw Press Machine for Sewage Treatment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Environmental Protection Machinery | Warranty Of Core Components | 2 Years |
|---|---|---|---|
| Core Components | Gearbox, Motor, PLC, Spiral, Shaft, Fixed And Moving Rings, Screw | Material | Stretch Film Or Plywood Box |
| Weight | Different As Each Model | Size | Different As Each Model |
| Highlight | automatic sludge dewatering screw press machine,automatic sludge dewatering machine,0.12m3/h sludge dewatering machine |
||
Product Description

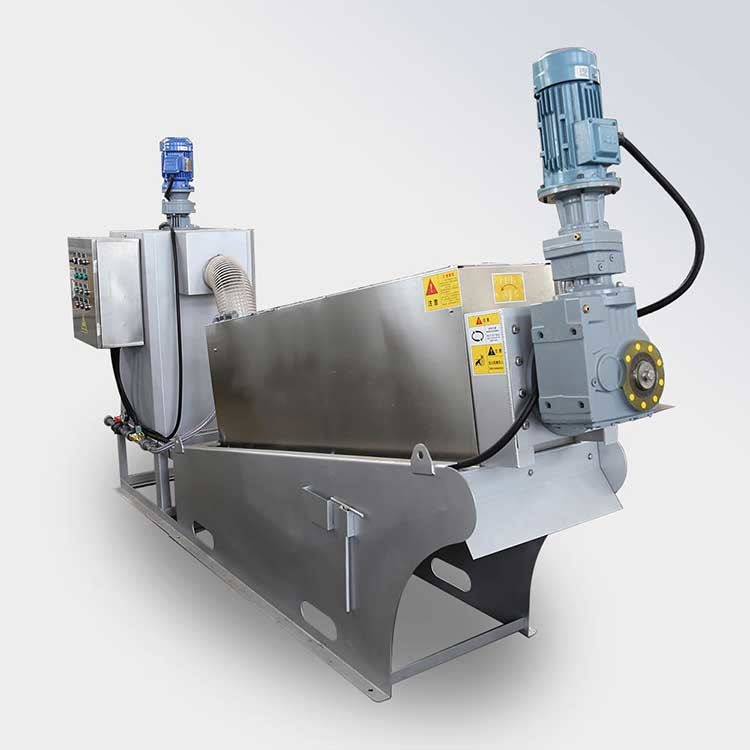

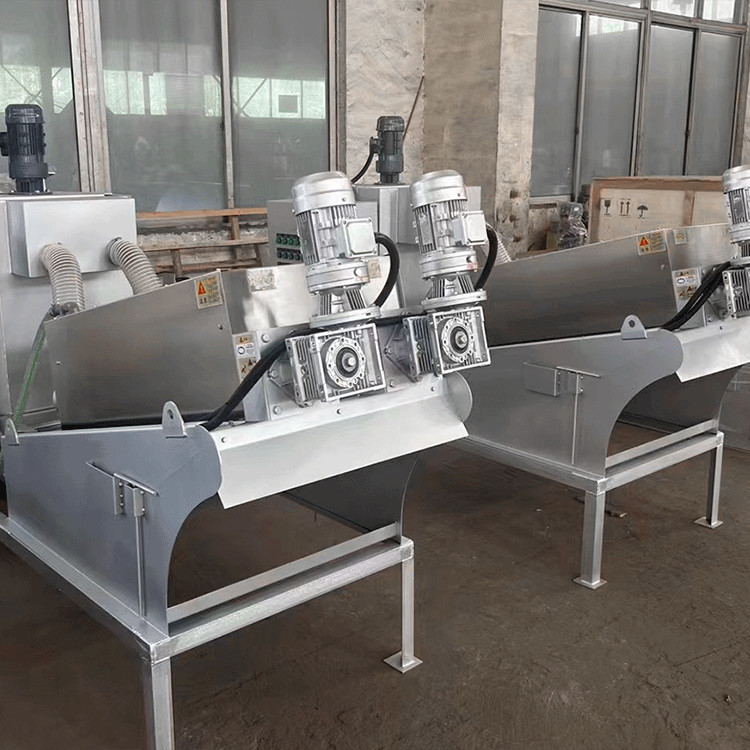

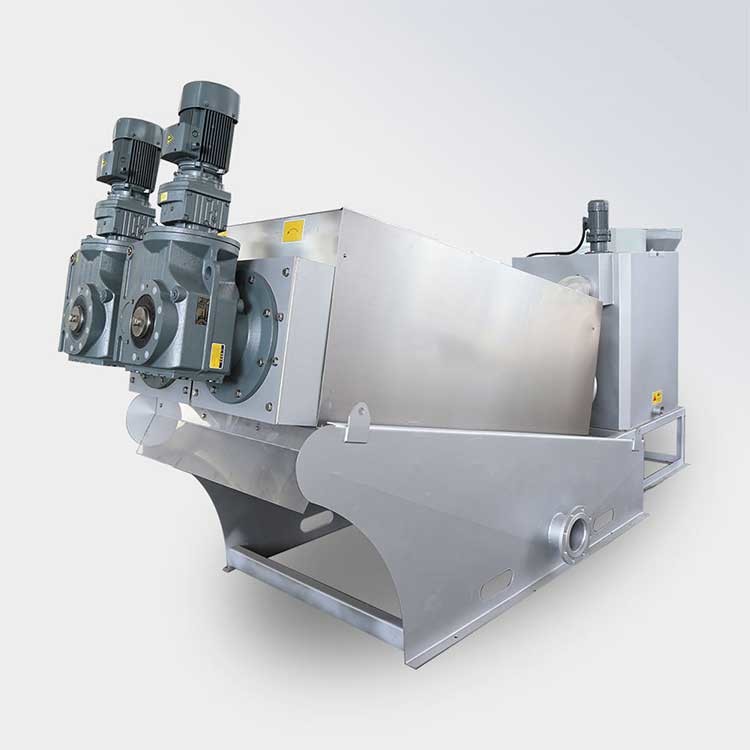

Automatic Sludge Dewatering Screw Press Machine for Sewage Treatment Water Treatment Machinery
Product description:
Stacked-screw Sludge Dewatering
Stacked-screw Sludge Dewatering which uses the screw extrusion priciple is a new type of solide-liquid separation device. It reaches the goal of extrusion dewatering sludge by the powerful extrusion pressure of changing the screw diameter and distance along with the tiny spacing between moveable and fixed annular plates.
★The main body of screw filter press is made of multiple fixedannular plates and moveable annular plates with the screw shaftrunning through it.
★The front part is concentrating section and the ending part isdewatering section. It can concentrate and dewater sludge inone chamber.
★Sludge will be transported to the dewatering part after beingconcentrated in the thickening section.
★ln the advancing process, great pressure has been producedbecause of the gradually decreasing filter spacing and screwdistance with the block of the back platen. Then the volumedecrease continuously, and the purpose of fully dewatering willbe achieved.
Stacked-screw Sludge Dewatering
1.Low energy consumption.
2.Minimal water consumption.
3.Minimal noise.
4.Low polymer consumption.
5.No need for proceeding sludge thickening.
6.Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
7.Minimal maintenance and operational cost.
8.Capable for working 24/7.
|
Application |
Sludge Dewatering |
|
Operation |
Fully Automatic |
|
Sludge Flow Treating Capacity |
0.12m³/h-135m³/h |
|
Material |
Carbon steel/Stainless steel |
Company Information:
Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.
FAQ:
Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
