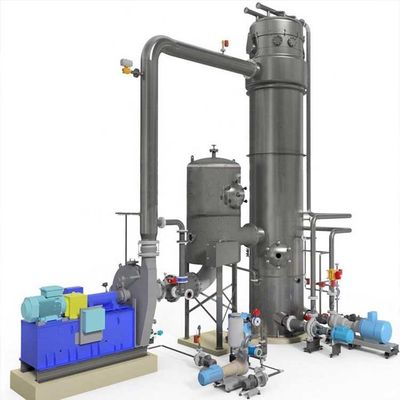

Chemical Effluent water desalination equipment Mvr Steam Compressor Brine Treatment Evaporator With PLC

Chemical Effluent Desalination Mvr Steam Compressor Brine Treatment Evaporator with PLC

Product description:

MVR SYSTEM INTRODUCTION

Mechanical vaporization re-compression system, which is called MVR which principle is to compress the second steam generated by evaporator by high efficiency steam compressor; this process transfers electric energy to eating energy and higher the pressure and temperature of second steam. The second steam with higher temperature will be sent to evaporation room to heat the product for evaporation. So the latent heat of vaporization of the second steam can be circularly used. Making use of less energy which is the mechanical energy of compressor blade wheel as the compression heat pump, energy is added into the heating medium and is circularly used in heating process. Under this circumstance, no need to add first steam as heating medium.

MVR SYSTEM ADVANTAGE

(1)Lowest energy consumption and operation cost, electricity consumption of one ton water’s evaporation is 15-50kw. (2)Temperature difference is small, heating is gentle, the loss of product is less.
(3)Compact structure and lower building cost; plant area is 50% less than that of traditional evaporator.
(4)Surrounding is friendly, no gas and no steam.
(5)Good adaptability in low loading condition, flexibility of operation is good and has a longer service life.
(6)Consumption of circular water is low and energy saving is obvious.
(7)No fresh steam is needed.
(8)Evaporation can be carried out under 40℃ and equipment need not to be frozen, specially suitable for thermal activity products.

Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.

FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
