Flue Gas Purification Hcl Fume / Ammonia / So2 Scrubber System 300 Kg

  • Flue Gas Purification Hcl Fume / Ammonia / So2 Scrubber System 300 Kg
  • Flue Gas Purification Hcl Fume / Ammonia / So2 Scrubber System 300 Kg
  • Flue Gas Purification Hcl Fume / Ammonia / So2 Scrubber System 300 Kg
  • Flue Gas Purification Hcl Fume / Ammonia / So2 Scrubber System 300 Kg
Place of Origin China
Brand Name Yanjiang
Certification CE、ISO
Model Number 06
Minimum Order Quantity Need to negotiate
Price Need to negotiate
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2 Sets Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty Of Core Components 1 Year Core Components Pump, Engine, Motor, Filler
Weight (KG) 300 Kg Condition New
Purify Efficiency 80%-99% Product Name Exhaust Gas Scrubber
Material PP FLAME RETARDANT Material/stainless Steel Material Main Function Waste Air Treatment
Highlight

flue gas purification hcl fume

,

so2 scrubber system 300 kg

,

ammonia so2 scrubber system
Leave a Message
Product Description

flue gas purification hcl fume/ammonia/so2 scrubber system​



Product description:

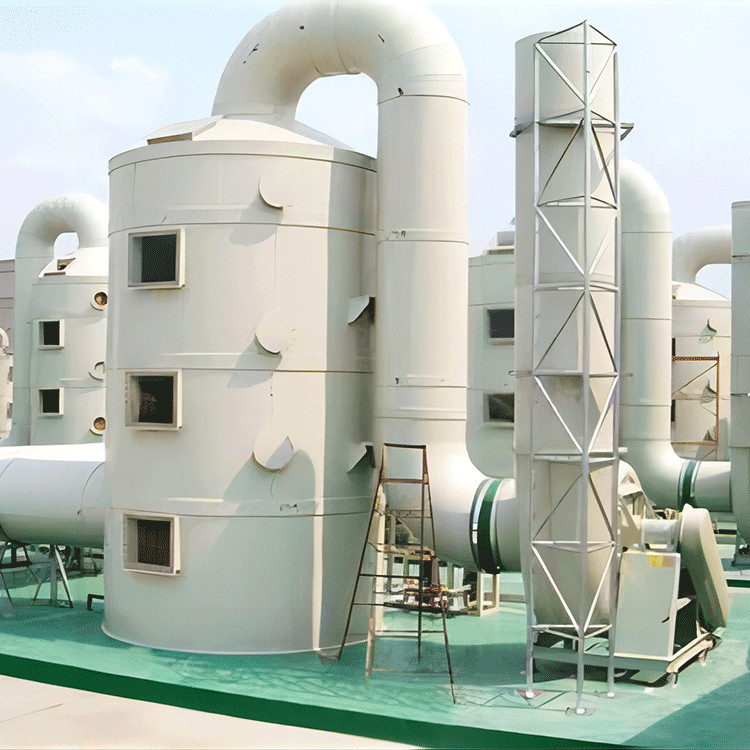

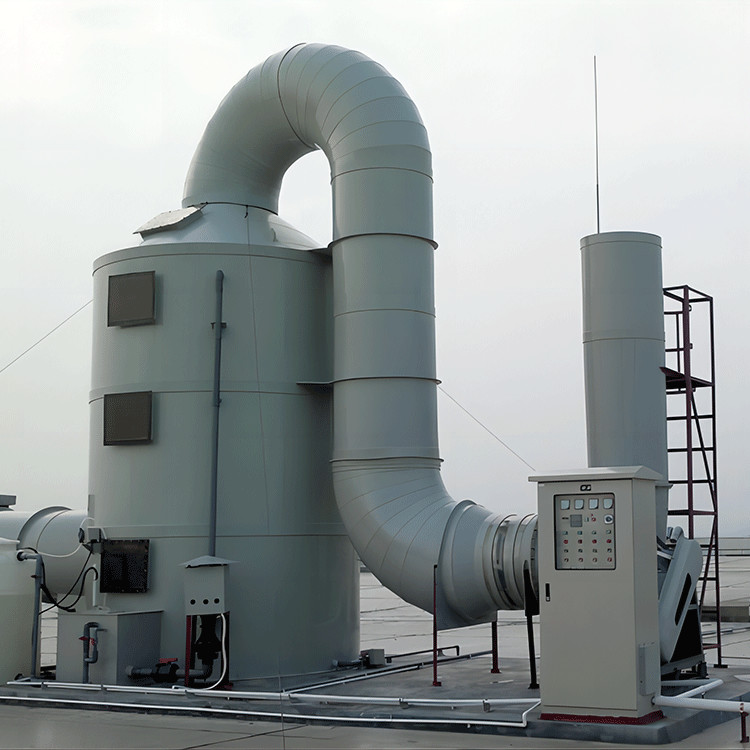

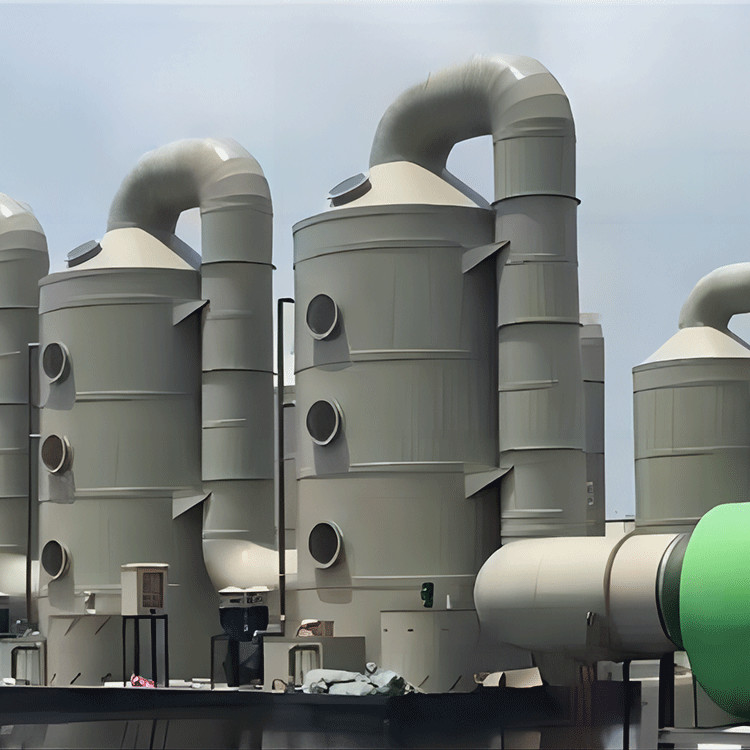

Air Purification Scrubber, also known as washing tower, is a new type of industrial waste gas treatment equipment, according to the size of tower and the need of processing exhaust gas in internal device, one or multi-layer spray device will be installed , which having the effect that filters exhaust gas.



The working principle of the most commonly used industrial wet scrubber is countercurrent spraying: acid or alkaline acid mist exhaust gas is introduced into the purification tower through the air duct, and the exhaust gas is fed from the bottom of the tower through the packing layer. continuous through the voids of the packing layer. On the surface of the packing, the gas-liquid
two phases fully contact, absorb and neutralize the reaction, and adsorb the acidic or basic pollutants contained in the exhaust gas.


After the acid mist exhaust gas is purified, the clean gas is dehydrated and demisted by the defogging plate and then discharged into the atmosphere by the fan.

Insoluble viscose particles and dust are poured into the collection tank, suspended particles are discharged from the overflow outlet, and the collected sediment is discharged from the sewage outlet. The absorption liquid is pressurized by the water pump at the bottom of the tower and sprayed downward from the top of the tower, and finally refluxed to the bottom of the tower for
recycling.



Air volume(m³/h)
Size(mm)
THK(mm)
Drain outlet(mm)
Water tank size(mm)
Inlet and
outlet size
(mm)
Pump(kw)
Wind
resistance
(Pa)
200-4000
800
8
DN63
700*550*H600
315
0.75
500
4000-5500
1000
8
DN63
750*600*H600
400
1.1
500
5500-8000
1200
8
DN63
750*600*H600
500
1.5
500
8000-12000
1500
8
DN63
750*600*H600
600
2.2
500
12000-17000
1800
10
DN63
850*600*H700
650
3
500
17000-21000
2000
10
DN63
850*600*H700
700
4
500
21000-25000
2200
10
DN63
950*600*H700
750
4
600
25000-32000
2500
12
DN63
950*600*H700
800
5.5
600
32000-40000
2800
12
DN63
1000*700*H700
900
7.5
600
40000-48000
3000
12
DN63
1000*700*H700
1000
7.5
600

Flue Gas Purification Hcl Fume / Ammonia / So2 Scrubber System 300 Kg 0



Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.



FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
