Advanced Technology Sewage Treatment Plant DAF Dissolved Air Flotation 2.5t 5kw Rectangle
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 2.5t | Size | 3500*1000*1900mm |
|---|---|---|---|
| Power | 5kw | Product Name | Dissolved Air Flotation |
| Application | Sewage Treatment | Type | Rectangle |
| Highlight | sewage treatment plant daf,daf sewage treatment equipment,2.5t sewage treatment plant |
||
Product Description
Advanced Technology Sewage Treatment Plant DAF Dissolved Air Flotation 2.5t 5kw Rectangle
Product description:
Dissolved air flotation
Dissolved air flotation (DAF) is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
1. Small footprint, lower energy consumption; easy operation and simple management
2. High efficiency of air dissolving, stable treatment effects;
3. This unit uses our GFA dissolved air system with ingenious structure. lts eficiency of air dissolving can reach up to 90%. Compared with traditional dissolved air system, our new dissolved air system has about one-fifth volume. What's more, it has strong anti-clogging capacity.
4. Use new type of dissolved air releaser, high releasing degree, the average particle size of micro bubbles is about 15-30um.
5. Use chain-plate skimmer, stable operation and high efficiency of scraping.

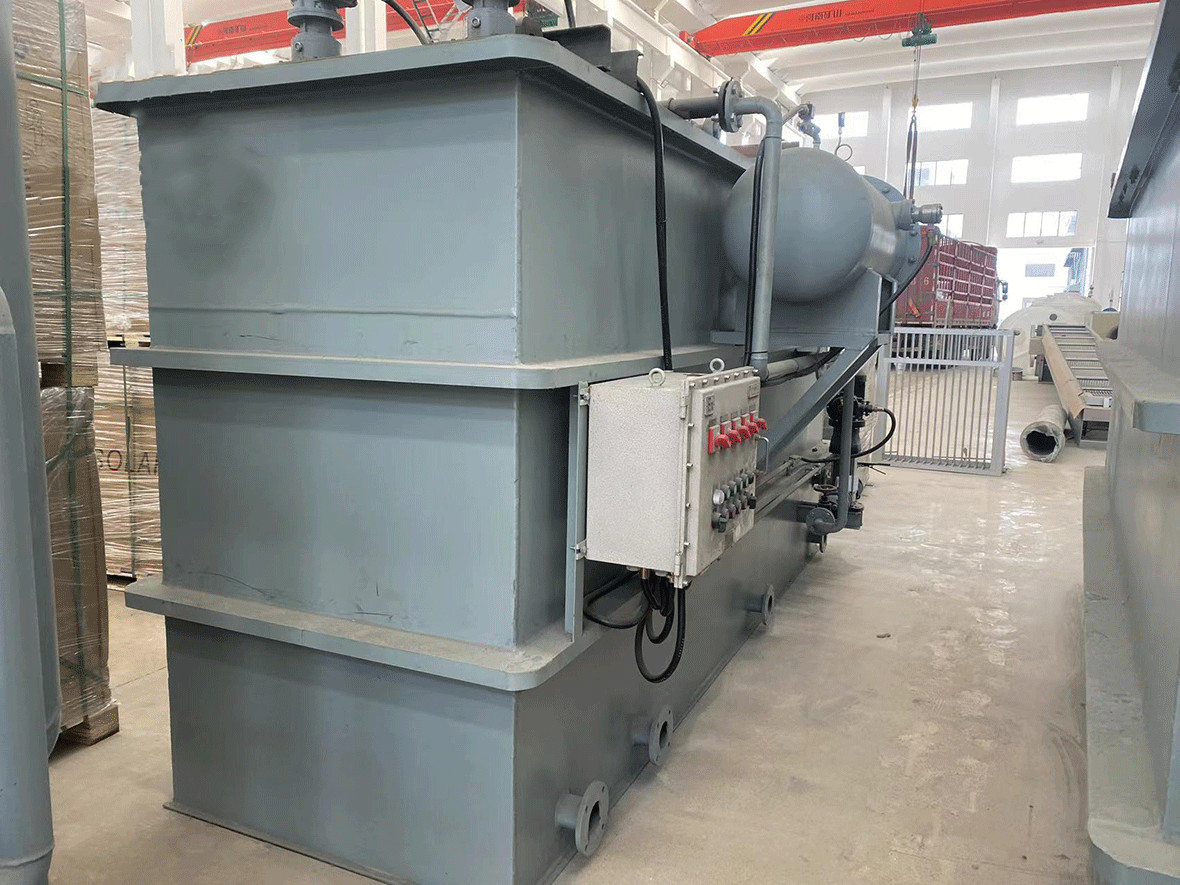

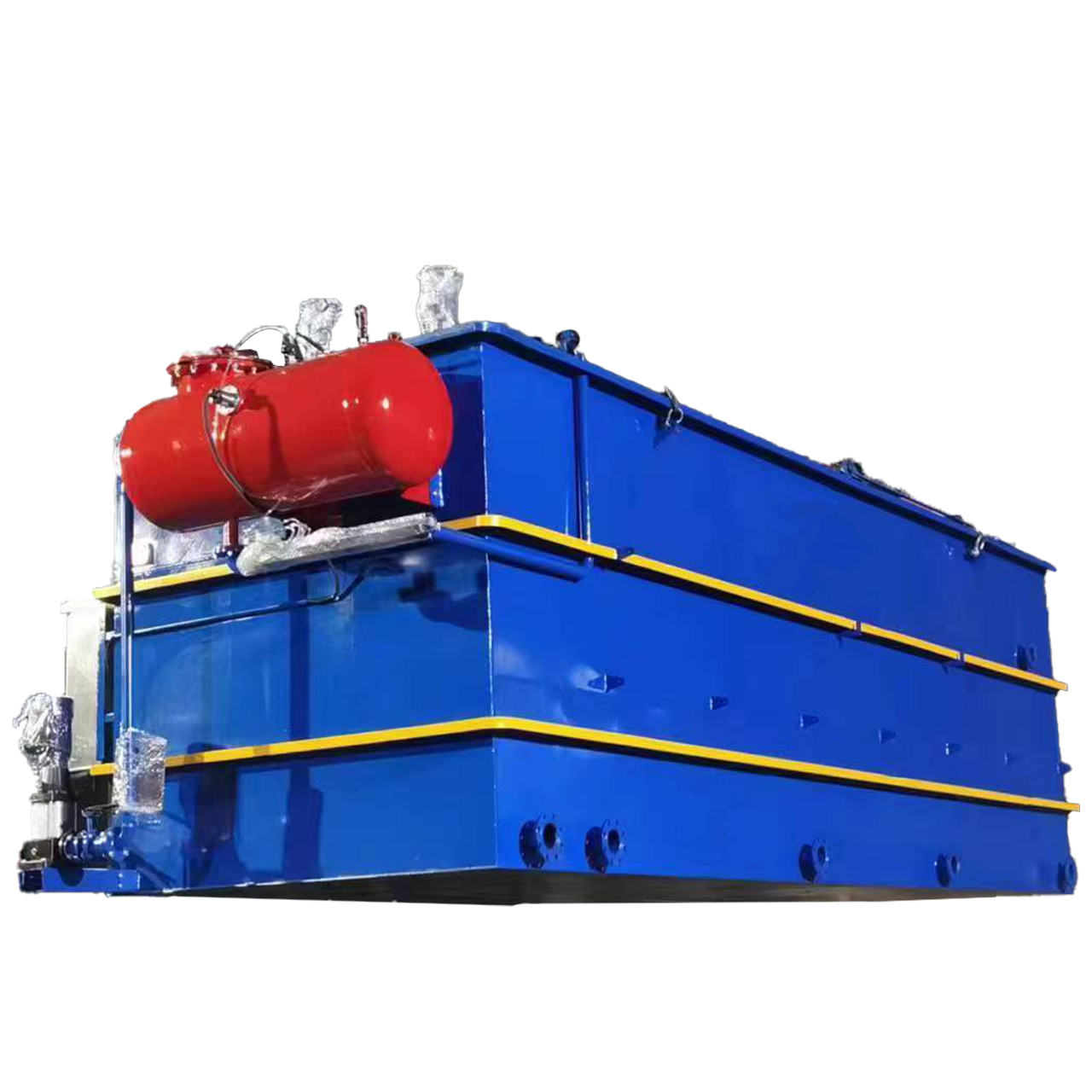

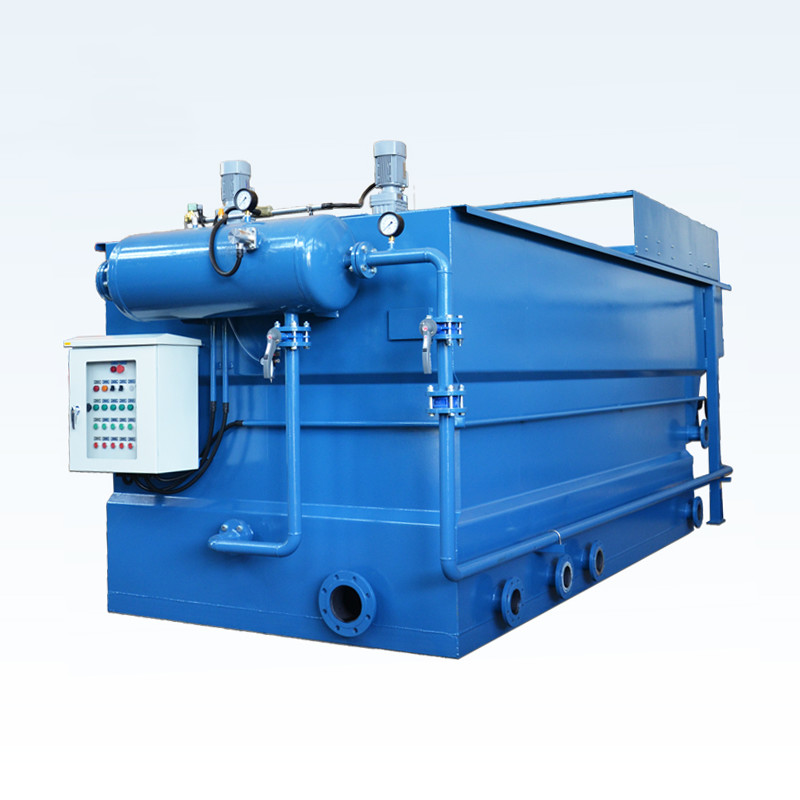

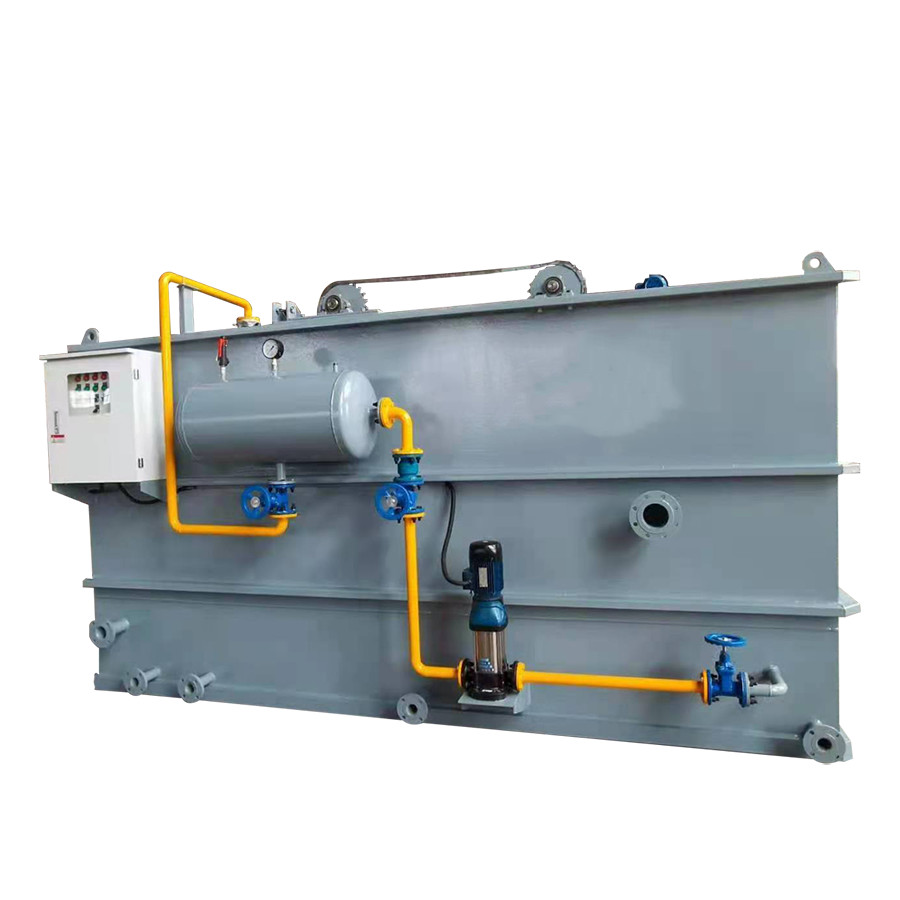

Dissolved Air Flotation(DAF) consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer (Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.
Air flotation separation technology dissolved air into water at certain working pressure. In the process, pressurized water is saturated with dissolved air and is discharged into a flotation vessel. The microscopic air bubbles produced by released air attach to suspended solids and float them to the surface, forming a sludge blanket. A scoop removes the thickened sludge. Finally, it complete purifies the water.
Air flotation technology plays an important role in solid-liquid separation (Simultaneously reduce COD, BOD, chroma, etc). Firstly, mix flocculating agent into raw water and stir thoroughly. After the effective retention time (lab determines the time, dosage and flocculation effect), the raw water enters into the contact zone where microscopic air bubbles adhere to the floc and then flows into the separation zone. Under the buoyancy effects, the tiny bubbles float the flocs to the surface, forming a sludge blanket. A skimming device removes the sludge into the sludge hopper. Then the lower clarified water flows into the clean-water reservoir through the collecting pipe. Some of water are recycled to the flotation tank for the air dissolving system, while others will be discharged.
| Model | Capacity(m³/h) | Dissolved air volume(m³/h) |
Main motor (kw) |
Total power(kw) | L | B | |
| Reaction exclude | Reaction included | ||||||
| YJ-1 | 0.5-1.0 | 0.3-0.5 | 0.55 | 1.28/2.02 | 1500 | 1000 | |
| YJ-2 | 1.0-2.0 | 0.5-0.8 | 0.55 | 1.28/2.02 | 1960 | 1200 | |
| YJ-3 | 2.0-3.0 | 1.0-1.5 | 1.1 | 1.85/2.65 | 3000 | 2100 | |
| YJ-5 | 3.0-5.0 | 1.5-2.0 | 1.1 | 1.85/2.65 | 3200 | 2300 | |
| YJ-10 | 5.0-10.0 | 3.0-4.0 | 1.5 | 2.45/3.25 | 4200 | 2500 | |
| YJ-15 | 10.0-15.0 | 4.0-5.0 | 2.2 | 3.35/4.85 | 4700 | 2800 | |
| YJ-20 | 15.0-20.0 | 5.0-7.0 | 2.2 | 3.35/4.86 | 4700 | 3100 | |
| YJ-30 | 20.0-30.0 | 8.0-12.0 | 5.5 | 6.65/8.15 | 5700 | 3300 | |
| YJ-40 | 30.0-40.0 | 10.0-15.0 | 5.5 | 6.65/8.15 | 7200 | 3500 | |
| YJ-50 | 40.0-50.0 | 15.0-18.0 | 7.5 | 9.4/10.9 | 7200 | 3800 | |
| YJ-60 | 50.0-60.0 | 18.0-20.0 | 7.5 | 9.4/10.9 | 8200 | 3900 | |
| YJ-70 | 60.0-70.0 | 20.0-25.0 | 11 | 13.6/15.1 | 9200 | 4100 | |
| YJ-80 | 70.0-80.0 | 25.0-30.0 | 11 | 13.6/15.1 | 10200 | 4400 | |
| YJ-100 | 80.0-100.0 | 35.0-40.0 | 15 | 17.6/19.1 | 10200 | 4800 | |
