Municipal Waste Water Sewage Treatment Plant Sludge Sludge Belt Press Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sludge Flow Treating Capacity | 10m³/h-60m³/h | DS Treating Capacity | 90-600kgds/h |
|---|---|---|---|
| Inlet SS Concentration | 0.8%- 1.5% | Outlet Cake Moisture Content | 70%-85% |
| Certification | S GS/CE/ISO 9001 | Material | SS304/316 |
| Highlight | municipal waste water sewage treatment plant,sludge belt press machine 10m3/h,municipal sludge belt press machine |
||
Product Description

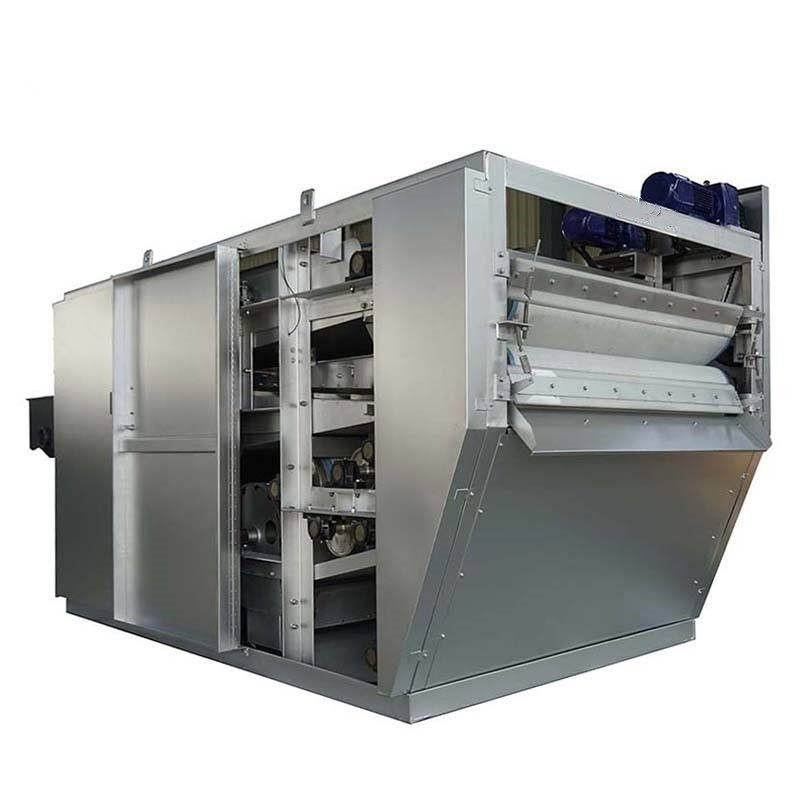

Municipal waste water sewage treatment plant sludge cake belt dewatering tech pressing machine
Product description:

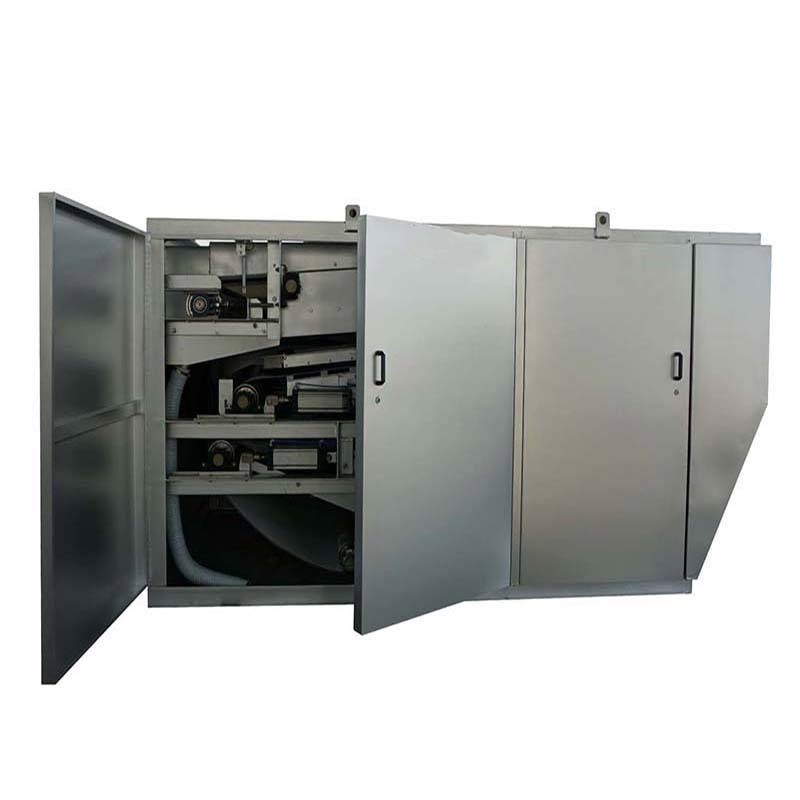

high duty type belt filter sludge dewatering device is mainly used for processing the sludge which is not concentrated in the thickening pool (such as A/O residual sludge). It has two functions: concentration and dewatering. Compared with the traditional gravity belt filter press, this equipment can meet the requirement of larger treatment capacity and lower sludge cake moisture content, by means of multiple press roll and high-pressure roll structure design. Meanwhile the outside door structure makes the system fully closed, maintenance expediently.

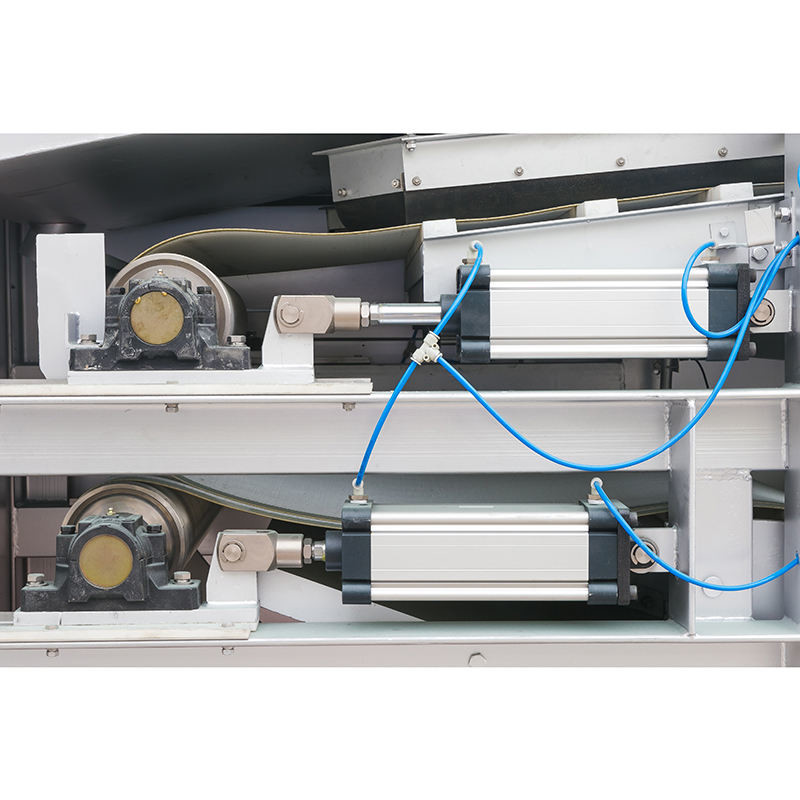

1- The action of the filter belt correction device is flexible and reliable. When the filter belt deviates from the center 15mm (operation can be adjusted according to the actual operation), the filter tape correction device works automatically, and the strainer is not more than 30mm in the operation, which can be adjusted according to the actual operation condition.
2- The dehydrator has a washing system, and the flushing device is composed of a spray pipe and a nozzle. The spray range covers the width of the filter belt, and each nozzle can be replaced. The flushing device has good sealing property, and it is not allowed to splash water and wet mud cake. And equipped with backwash filter for easy maintenance and cleaning.
3- The filter belt is made of polyester monofilament, which has the characteristics of high strength, corrosion resistance, good permeability, easy to block, smooth surface and high solid recovery rate.
4- The empty load test of the dehydrator meets the requirements of 6.16 of JB/T8102-1999, and the load test meets the requirements of JB/T8102-1999 6.17.
| Model | DNYF1 | DNYF1.5 | DNYF2.0 | DNYF2.5 | DNYF3.0 | Remark | |
| Belt width(mm) | 1000 | 1500 | 2000 | 2500 | 3000 | ||
| Capacity(m³/h), Inlet concentration(S.S.0.8-1.5%) | 10-20 | 15-30 | 25-40 | 35-50 | 40-60 | Depending on the characteristic of sludge | |
| Sludge cake moisture content(%) | 70-85 | 70-85 | 70-85 | 75-85 | 75-85 | ||
| Motor power(kw) | Driving motor(frequency control) | 1.5 | 1.5 | 2.2 | 2.2 | 3.0 | |
| Belt thickening motor(frequency control) | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 | ||
| Agitator motor | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 | ||
| Lower collecting tray for filtrate | NO | NO | NO | NO | NO | ||
| External dimension(mm) | L | 3850 | 3850 | 4500 | 4500 | 4500 | Please ask for the actual installation sizedrawing before purchasing |
| W | 1580 | 2080 | 2580 | 3080 | 3580 | ||
| H | 2090 | 2090 | 2590 | 2590 | 2590 | ||
| Base dimension L1*W1(mm) | 2920*1340 | 2920*1840 | 3450*2240 | 3450*2760 | 3450*3260 | ||
| Base dimension L2*W2(mm) | 750*750 | 800*800 | 960*960 | 1210*1210 | 1210*1210 | ||
| Reference weight(kg) | 3500 | 4200 | 6900 | 7800 | 9500 | ||
Company Information:
Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.
FAQ:
Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
