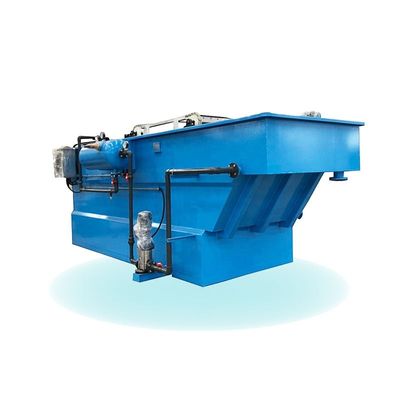

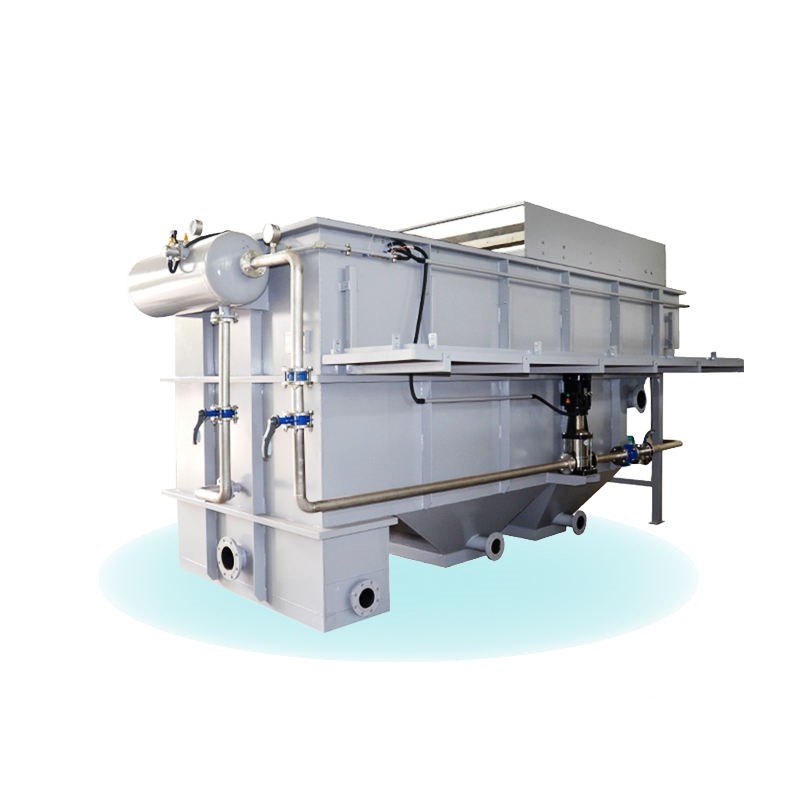

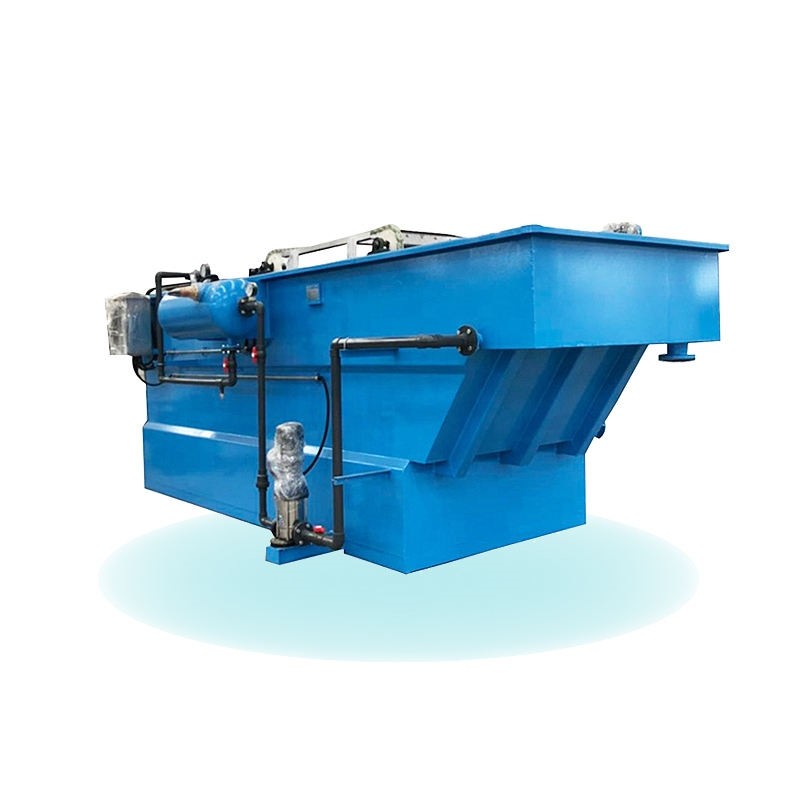

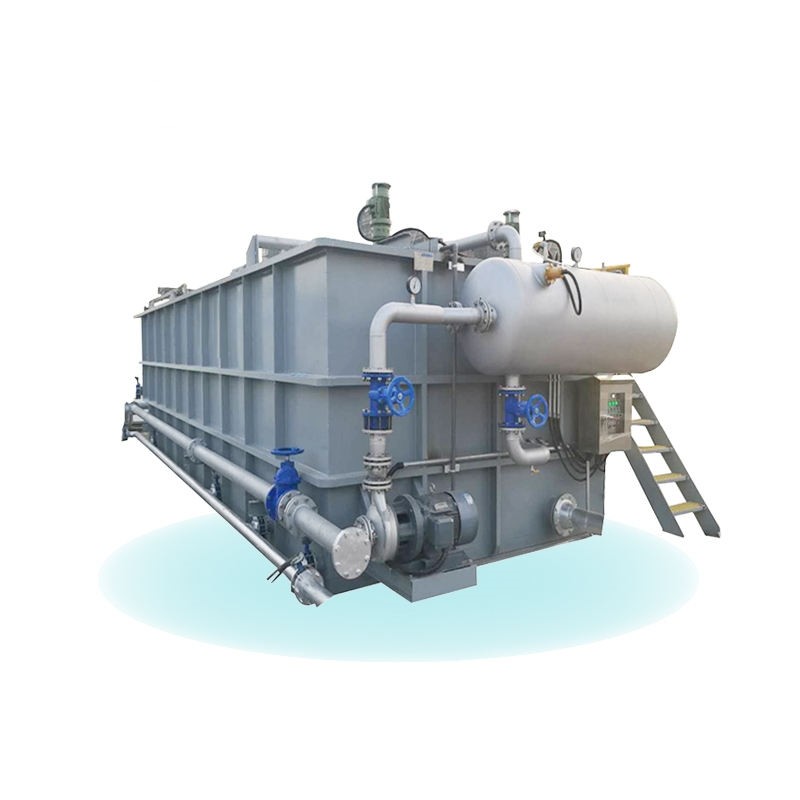

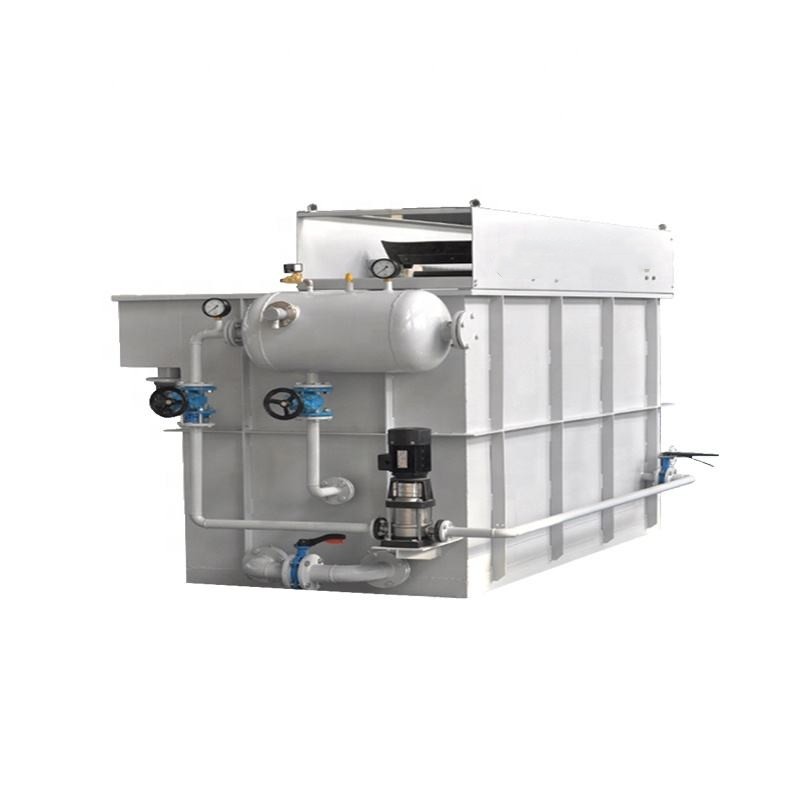

Pigs Sheep Goats Slaughterhouse Sewage Treatment Machine DAF System Dissolved Air Flotation Clarifier

Place of Origin China
Brand Name Yanjiang
Certification CE、ISO
Model Number 04
Minimum Order Quantity Need to negotiate
Price Need to negotiate
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 Sets Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Carbon Steel Or SUS304, Stainless Steel Or Carbon Steel Weight 1000-12000KG
Size More Than 1M*1M*1M Power More Than 1.5KW, 1.5-22KW
Feature High Hydraulic Load With Skimmer Function SS Removal BOD Removal
Highlight

slaughterhouse sewage treatment machine

,

sewage treatment machine daf

,

pigs water treatment machine

Leave a Message
Product Description

Pigs Sheep Goats slaughterhouse Sewage Treatment machine DAF system Dissolved Air Flotation Clarifier



Product description:

Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.Dissolved Air
Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water,
colloid , oil and grease etc.

dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.

DAF dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer(Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.
Air flotation separation technology of Norsen DAF dissolved air flotation dissolves air into water at certain working pressure. In the process, pressurized water is saturated with dissolved air and is discharged into a flotation vessel. The microscopic air bubbles produced by released air attach to suspended solids and float them to the surface, forming a sludge blanket. A scoop removes the thickened sludge. Finally, it complete purifies the water.
Air flotation technology of DAF dissolved air flotation plays an important role in solid-liquid separation (Simultaneously reduce COD, BOD, chroma, etc). Firstly, mix flocculating agent into raw water and stir thoroughly. After the effective retention time (lab determines the time, dosage and flocculation effect), the raw water enters into the contact zone where microscopic air bubbles adhere to the floc and then flows into the separation zone. Under the buoyancy effects, the tiny bubbles float the flocs to the surface, forming a sludge blanket. A skimming device removes the sludge into the sludge hopper. Then the lower clarified water flows into the clean-water reservoir through the collecting pipe. Some of water are recycled to the flotation tank for the air dissolving system, while others will be discharged.DAF dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer(Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.



Capacity

5-200m³/h

Weight

more than 1000kg

Size

more than 1*1*1m



Pigs Sheep Goats Slaughterhouse Sewage Treatment Machine DAF System Dissolved Air Flotation Clarifier 0

Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.



FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
