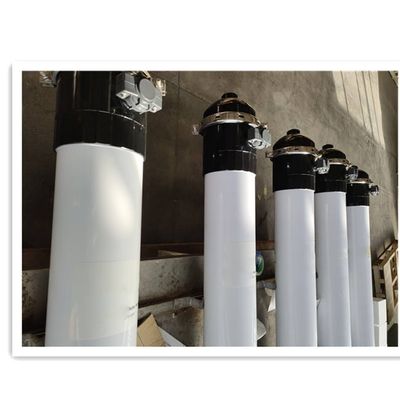

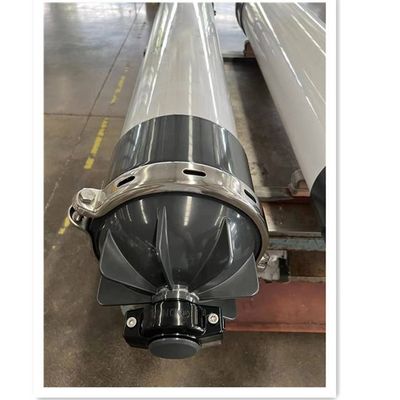

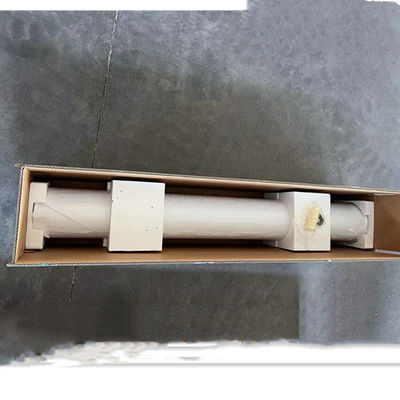

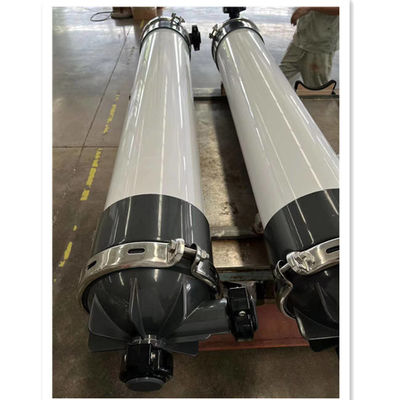

PVDF Hollow Fiber UF Membrane Ultrafiltration Membrane Drinking Water Filter System 0.03μM 88KGS

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | PVDF | Weight | 88KGS |
---|---|---|---|
Size | 2185*315*365(mm) | Power | Standard |
Fiber Material | Polyvinylidene Fluoride (PVDF) | Membrane Technology | TIPS |
Membrane Configuration | Hollow Fiber | Nominal Pore Size | 0.03μm |
Highlight | hollow fiber uf membrane,uf ultrafiltration membrane,0.03μm uf membrane |
Ultrafiltration Membrane Drinking Water Filter System spare parts PVDF hollow fiber UF membrane
Product description:
Discover the pinnacle of water filtration with our Ultrafiltration (UF) Membrane Drinking Water Filtration System Components. Crafted from premium PVDF (Polyvinylidene Fluoride), our hollow fiber UF membranes are the epitome of reliability and efficiency in water purification technology. These components are designed to provide the highest level of filtration for drinking water, ensuring that every drop is pure and safe for consumption.
Key Features:
- High-Quality PVDF Material: Known for its excellent chemical resistance and durability, PVDF ensures the longevity of the membrane.
- Hollow Fiber Structure: This design maximizes surface area for filtration, enhancing the system's overall performance.
- Ultrafiltration Technology: Capable of removing a broad spectrum of contaminants, including bacteria, viruses, and suspended solids.
- Easy Maintenance: Our membranes are designed for easy cleaning and minimal downtime, ensuring continuous operation.
- Compatibility: These components are compatible with a wide range of filtration systems, providing flexibility for various applications.
Our UF membrane components are more than just a part of a filtration system; they are the heart of a pure water solution that you can trust for your daily hydration needs.
Fiber Material | Polyvinylidene Fluoride (PVDF) |
Membrane Technology | TIPS |
Membrane Configuration | Hollow Fiber |
Nominal Pore Size | 0.03 μm |
Fiber I.D./O.D. | 0.7 mm/1.3 mm |
Flow Configuration | Outside-in |
Housing Material | U-PVC/ABS |
Potting Material | Epoxy Resin |
Sealing Type/Material | O-ring/EPDM |
A/C Port Size | ANSI 2” Coupling |
B Port Size | ANSI 1-1/2” Union |
Effective Area | 60 m2 |
Module Volume (Water) | 38 L |
Weight (Water-filled/Empty) | 75/37 kg |
Packing Weight | 88 kg |
Company Information:
Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.
FAQ:
Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
