U Type Boiler Energy Saver Industrial Waste Gas Recovery Treatment Device Waste Heat Recovery Heat Exchanger
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty Of Core Components | 1 Year | Core Components | Fin Tube |
|---|---|---|---|
| Place Of Origin | China | Weight | 10-500 KG |
| Warranty | 1 Year | Key Selling Points | Energy Saving |
| Highlight | boiler waste gas treatment,boiler waste gas recovery treatment device,u type waste gas treatment |
||
Product Description

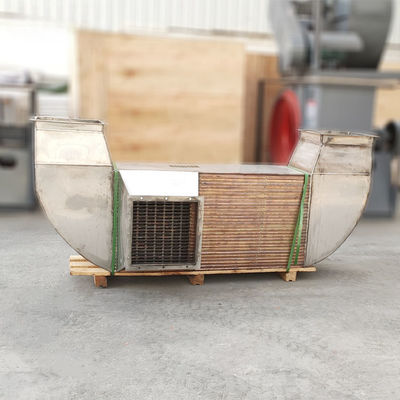

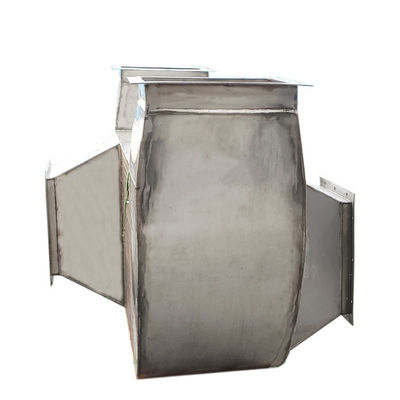

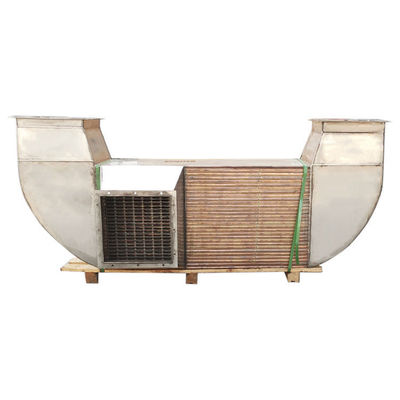

U-type Boiler Energy Saver Industrial Waste Gas Recovery Treatment Device Waste Heat Recovery Heat Exchanger
Product description:
Flue gas waste heat recovery is a kind of energy-saving equipment that recovers the heat of high temperature gas in industrial production. Its working principle is also heat exchange. High temperature gas heats low temperature liquid and gas through high efficiency heat exchange equipment and low temperature liquid and gas high efficiency heat exchange, which reduces the temperature of flue gas and saves energy consumption. It is widely used in boiler flue gas heat recovery, aluminum smelting furnace flue gas heat recovery and hot air heat recovery at high temperature.
Main Features
The product are customized for different airwateroilboilersteam heating and other industrial.After investigating and feedbacks by customercharateristics as following:
1,Seamless heat transfer elementhigh-pressure-resistant ability.
2,Even internal flow fieldno dew-point corrosion.
3,Make the boiler heat efficiency to improve greatly.
| Number | Flue gas volume (m³/h) |
Flue gas temperature drop(℃) |
Water flow (T/h) |
L (mm) |
H (mm) |
W (mm) |
D (mm) |
D1 (mm) |
interface | Recovery of heat (kW) |
Saving natural gas (m³/h) |
| 1 | ≤970 | 280℃-130℃ | 1 | 480 | 530 | 580 | 380 | 300 | DN25 | 50 | 5.4 |
| 2 | ≤1463 | 280℃-130℃ | 1.5 | 580 | 530 | 580 | 380 | 300 | DN32 | 75 | 8 |
| 3 | ≤1950 | 280℃→130℃ | 2 | 680 | 670 | 580 | 480 | 400 | DN32 | 100 | 10.8 |
| 4 | ≤2925 | 280℃-130℃ | 3 | 780 | 810 | 580 | 480 | 400 | DN40 | 150 | 16 |
| 5 | ≤3900 | 280℃→130℃ | 4 | 880 | 950 | 580 | 580 | 500 | DN40 | 200 | 21.5 |
| 6 | ≤4225 | 280℃-130℃ | 5 | 980 | 950 | 600 | 580 | 500 | DN50 | 215 | 23 |
| 7 | ≤5444 | 280℃-130℃ | 6 | 980 | 1020 | 600 | 680 | 600 | DN50 | 275 | 29.6 |
| 8 | ≤7259 | 280℃-130℃ | 8 | 1080 | 1160 | 600 | 780 | 700 | DN50 | 365 | 39 |
| 9 | ≤9073 | 280℃-130℃ | 10 | 1280 | 1230 | 600 | 880 | 800 | DN50 | 455 | 49 |
| 10 | ≤10888 | 280℃-130℃ | 12 | 1380 | 1370 | 600 | 980 | 900 | DN50 | 550 | 59 |
Company Information:
Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.
FAQ:
Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
