1600kg 1.85kw Dissolved Air Flotation System 10m3/h With Sedimentation Tank For Printing And Dyeing Sewage

  • 1600kg 1.85kw Dissolved Air Flotation System 10m3/h With Sedimentation Tank For Printing And Dyeing Sewage
  • 1600kg 1.85kw Dissolved Air Flotation System 10m3/h With Sedimentation Tank For Printing And Dyeing Sewage
  • 1600kg 1.85kw Dissolved Air Flotation System 10m3/h With Sedimentation Tank For Printing And Dyeing Sewage
  • 1600kg 1.85kw Dissolved Air Flotation System 10m3/h With Sedimentation Tank For Printing And Dyeing Sewage
Place of Origin China
Brand Name Yanjiang
Certification CE、ISO
Model Number 01
Minimum Order Quantity Need to negotiate
Price Need to negotiate
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 Sets Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel, Carbon Steel Weight 1600kg
Size 4.3*2.9*2.7m Power 1.85kw
Operation Automatic Running Capacity 10m³/h
Highlight

1.85kw dissolved air flotation system

,

dissolved air flotation system 10m3/h

,

1600kg dissolved air floatation system
Leave a Message
Product Description

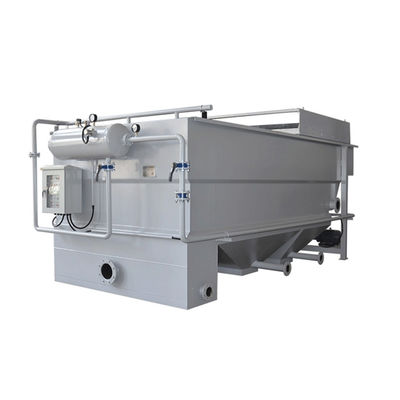

Dissolved Air Flotation System Price With sedimentation tank for Printing and dyeing sewage



Product description:

Discover our Dissolved Air Flotation (DAF) System, a premium solution tailored for the treatment of printing and dyeing sewage. This advanced system is designed to effectively separate suspended solids, oil, and other contaminants from wastewater, ensuring compliance with stringent environmental standards. The integration of a sedimentation tank enhances the system's efficiency, providing a dual-stage treatment process that guarantees superior water quality.

Key Features:

  • Efficient Separation: Utilizes micro-bubbles to float contaminants to the surface for easy removal.
  • Cost-Effective: Offers a competitive price without compromising on performance or quality.
  • Customizable Design: Can be configured to meet the specific requirements of various printing and dyeing processes.
  • Low Maintenance: Engineered for minimal downtime and easy operation, reducing overall maintenance costs.
  • Environmentally Friendly: Reduces the environmental impact of printing and dyeing operations by effectively treating wastewater.

Our DAF System with a sedimentation tank is more than just an investment in wastewater treatment—it's an investment in the sustainability and reputation of your printing and dyeing business. Experience the difference our technology can make for your operations.

Model Capacity Power(kw) Dimension(m) Nozzle list(DN)
(m³/h) Recirculation pump Air compressor Skimmer L/L1 W/W1 H/H1 Inlet Outlet Sludge outlet
YJ2-010 ~10 1.5 0.55 0.2 4.5/3.2 2.9/1.66 2.3/1.9 100 100 100
YJ2-015 ~15 2.2 0.75 0.2 5.6/4.3 2.9/1.66 2.3/1.9 100 100 100
YJ2-020 ~20 3.0/5.5 0.75 0.2 5.6/4.3 3.1/2.16 2.3/1.9 150 100 100
YJ2-030 ~30 3.0/5.5 0.75 0.2 6.7/5.4 3.1/2.16 2.3/1.9 150 150 150
YJ2-040 ~40 3.0/5.5 0.75 0.2 6.9/5.5 3.6/2.7 2.7/2.3 200 150 150
YJ2-050 ~50 7.5 1.5 0.2 7.6/6.3 3.6/2.6 2.7/2.3 200 150 150
YJ2-060 ~60 7.5 1.5 0.2 8.1/6.6 4.0/3.0 2.7/2.3 250 200 150
YJ2-070 ~70 11 1.5 0.2 9.4/7.9 4.0/3.0 2.7/2.3 250 200 150
YJ2-080 ~80 11 2.2 0.2 9.9/8.4 4.0/3.0 2.7/2.3 250 200 150
YJ2-100 ~100 15 2.2 0.2 10.9/9.4 4.4/3.4 2.7/2.3 300 250 150
YJ2-120 ~120 15 2.2 0.2 11.9/10.4 4.4/3.4 2.7/2.3 300 250 150
YJ2-150 ~150 18.5 2.2 0.2 12.5/11.44 4.4/3.8 2.7/2.3 300 300 150


1600kg 1.85kw Dissolved Air Flotation System 10m3/h With Sedimentation Tank For Printing And Dyeing Sewage 01600kg 1.85kw Dissolved Air Flotation System 10m3/h With Sedimentation Tank For Printing And Dyeing Sewage 1



Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.



FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
