ODM Solar Power Industrial Wastewater Treatment Equipment Sewage Digester High Efficiency
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Scale (m3/d) | 20m³/d | Technology | AO+Bacteria Sieve Filtration |
|---|---|---|---|
| Voltage (V) | Solar Energy (220V Main Power Supplement ) | Dimension L*W*H (m) | 4.0*2.0*2.5 |
| Installed Power (KW) | 0.9 KW | Area (m2) | 8.00 |
| Highlight | odm sewage treatment plant,odm wastewater treatment equipment,20m3/d sewage treatment plant |
||
Product Description
ODM Solar Power Industrial Wastewater Treatment Equipment Sewage Digester High Efficiency
Product description:

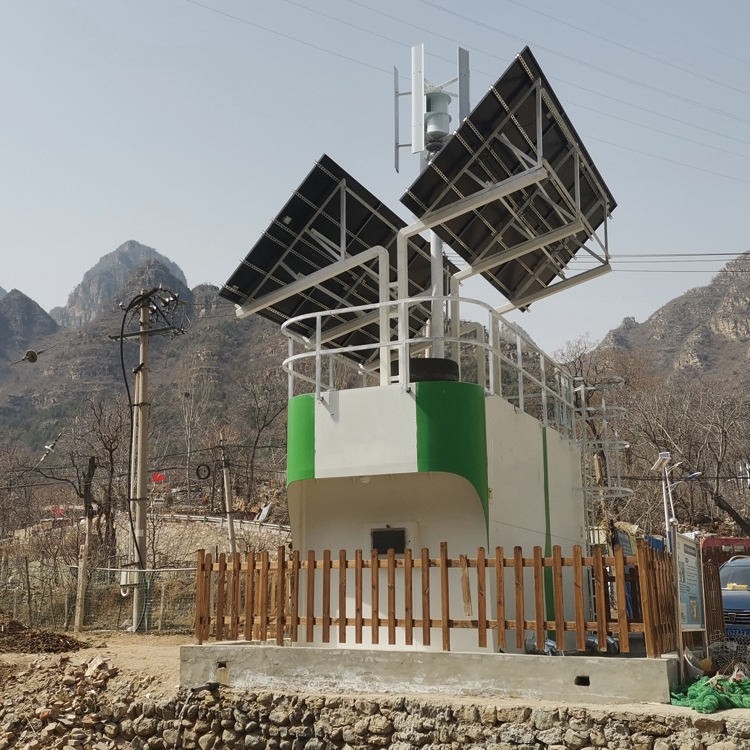

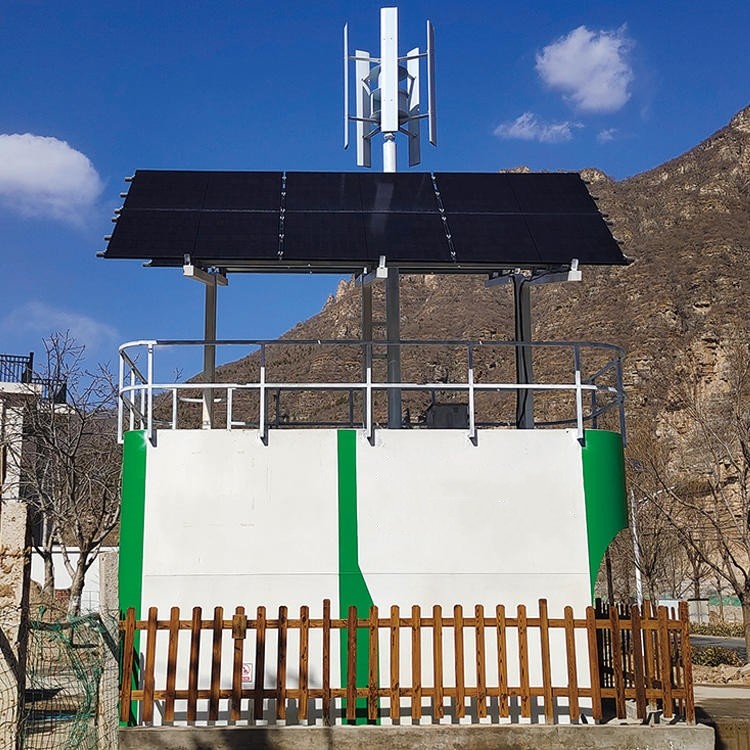

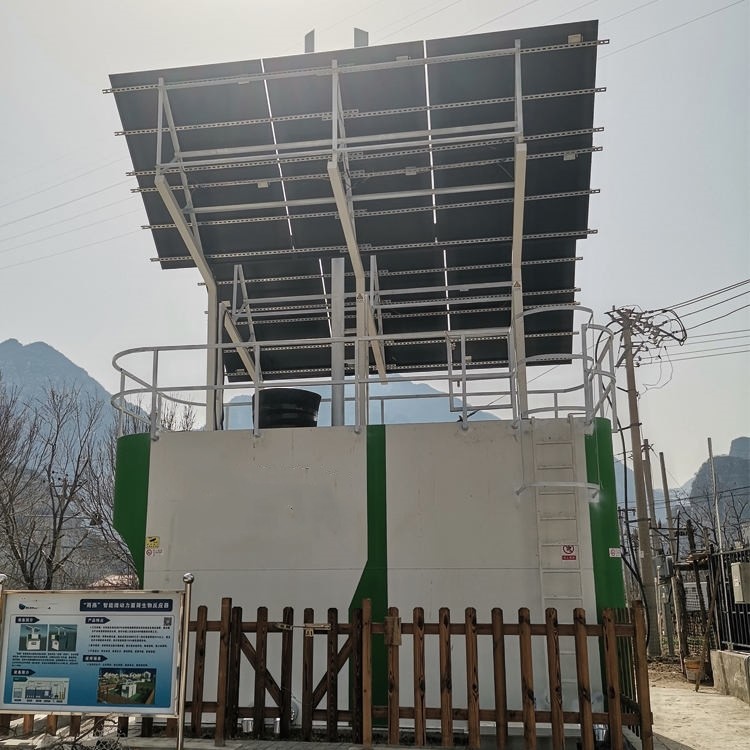

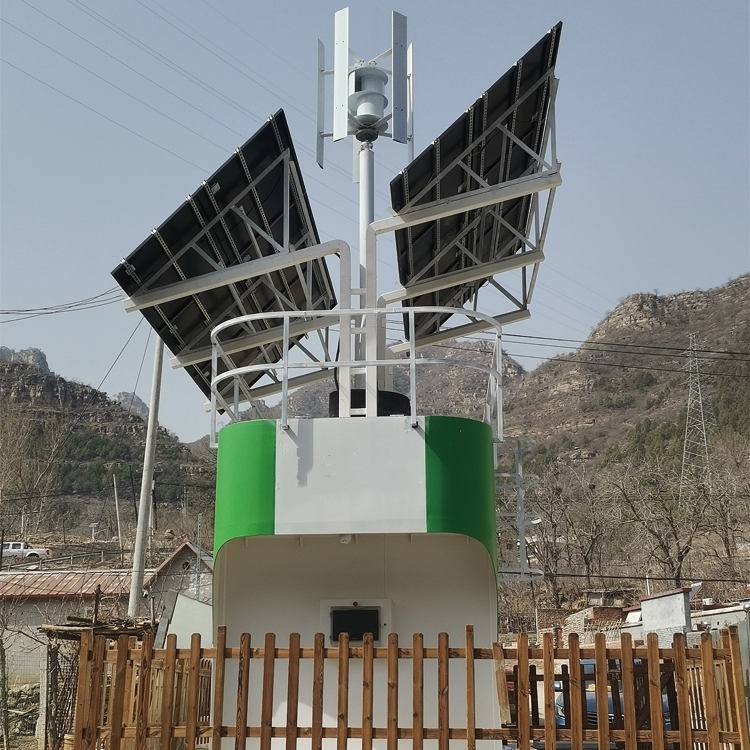

Solar-Powered Sewage Treatment Bioreactor — Solar energy saving products
Solar-Powered Sewage Treatment Bioreactor (“Swift” Solar Sewage Bioreactor) integrates solar power supply system, anoxic zone, aerobic zone, bacteria sieve filtration zone, etc., and adopts A/O process + bacteria sieve filtration. The effluent meets the local discharge standards. Dual power supply from solar energy and power grid realizes energy saving and carbon reduction; intelligent remote control realizes visual operation of equipment. The Bioreactor can meet the requirement for domestic sewage use in separate households or joint households . The effluent reaches the local discharge standards.
①Advanced technology
We utilize the microbial flora and EPS in activated sludge to form a nano-scale filtration membrane layer under the action of a special base membrane and hydraulic flow regime; thereby achieving efficient solid-liquid separation through microgravity without the need for sedimentation tanks and deep treatment. Effluent water reaches discharge standards.
②Energy efficient
Through process innovation and breakthroughs, the entire system is designed to be energy-saving. With very few power equipment, and the power is more than 50% lower than MBR equipment with the same processing scale.
③Solar powered
Equipped with standard solar panels and energy storage system, it can achieve 100% green energy power supply with less than 50t/d, and the dual power switch of mains power and solar energy can realize millisecond-level automatic switching.
④Pulse aeration
The pulse aeration method is used for hydraulic mixing in the anoxic zone, which not only solves the fluidization effect of low dissolved oxygen sludge, but also solves the problem of high energy consumption and proneness to damage of traditional mixers.
⑤Simplicity and aesthetics
Simplicity and aesthetics appearance design concept, equipped with industrial LCD display, making the reactor smarter and simpler. The shape is combined with solar photovoltaic panels and looks like a flying swallow, hence the name "SWIFT".
⑥Intelligent remote control
The Data generated by the equipment is collected into the PLC central control program through turbidity, flow meter, three-way valve, dissolved oxygen meter and other related sensors. The remote transmission and video image technology of the Internet of Things are used to realize remote transmission operation, monitoring and control. The operation of the reactor cam be completely visualized.
| Model | YJ-10 | YJ-20 | YJ-30 | YJ-50 | YJ-75 | YJ-100 | YJ-150 |
| Scale(m3/d) | 10 | 20 | 30 | 50 | 75 | 100 | 150 |
| Technology | AO+Bacteria sieve filtration | ||||||
| Dimension L*W*H(m) | 2.8×2.0×2.5 | 4.0×2.0×2.5 | 4.6×2.2×3.2 | 5.5×2.5×3.0 | 7.0×2.5×3.0 | 8.5×3.0×3.0 | 11.5×3.0×3.0 |
|
Installed Power (KW) |
0.75 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 3 |
| Population Serviced(per) | 100 | 200 | 300 | 500 | 750 | 1000 | 1500 |
| Area (m2) | 5.60 | 8.00 | 10.12 | 13.75 | 17.50 | 25.50 | 34.50 |
| Net Weight (t) | 3 | 4 | 4.8 | 6 | 7.5 | 8.8 | 16 |
| Installation Method | Standard overground type | ||||||
| Voltage (V) | Solar energy (220V main power supplement ) | ||||||
Company Information:
Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.
FAQ:
Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
