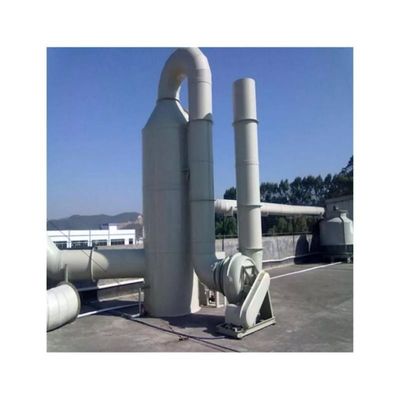

FRP Bubble Tower GRP Fiberglass Absorption Purification Tower Equipment For Waste Gas Treatment

China Price FRP Bubble Tower GRP Fiberglass Absorption Purification Tower Equipment for Waste Gas Treatment

Product description:

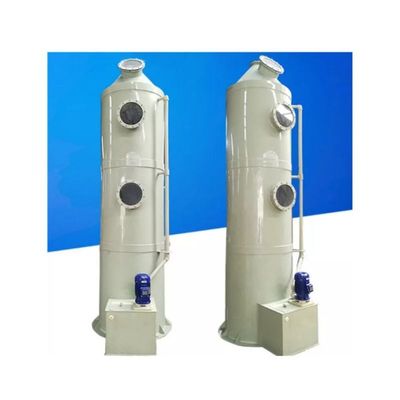

The FRP Acid Mist Gas Absorption Scrubber Tower is mainly composed of Water tank, Circulating water, Packing layer, Spraying system, Demister etc.

The FRP Acid Mist Gas Absorption Scrubber Tower is designed to capture dust particles, VOCs, chemical fumes, and other water / chemically soluble fumes and Vapors generated in industrial process.

Desulphurization spray layer is based on the upper part of the tower, the absorption tower slurry circulating pump corresponding to each spray layer. The nozzle configuration of spray layer is simulated designed by professional software in order to ensure good contact with alkali and acid reverse gasreaction; and finally reach purification effects.
Demister installs in the upper of desulphurization tower, a total of two levels.The net is used to separate the entrainment of flue gas cloud droplets, and droplet concentration in flue gas export from mist eliminator is less than 75 mg/Nm3 (dry basis).

At the same time, the equipment also has spray washing device to the tiny dust particles adhesion and desulphurization of flue gas crystallization on the demister system resistance increases.

1. The body of the tower is made of FRP (fiber reinforced plastics), and its surface is bonded by gel coat resin, it has
aging-resistant, corrosion resistant and beautiful & smooth surface etc characteristics.

2. The fan can be made of aluminum alloy or FRP, it has large wind volume, low noise, high efficiency, stable running, long
service life etc characteristics.

3. The motor is the special motor which can be used outdoor, it has energy saving, high efficiency etc properties, the speed
reducer is the special used for the cooling tower.

4. The filler is new type and high efficiency, it has water distribution is uniform, small wind resistance and high temperature
resistant etc characteristics.

5. The steel support adopts advanced galvanization process, it has excellent corrosion resistant property.

6. Because the cooling tower can be installed by assembly, the volume of water treatment can be increased manyfold, but the land which be used for the cooling tower is small.

The water treatment volume of single cell is 50m3/h-7000m3/h, except help customers to buld new cooling towers, we also provide maintenance service, include replace old PVC fill, ABS spraying head, FRP panels etc.

Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.

FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
