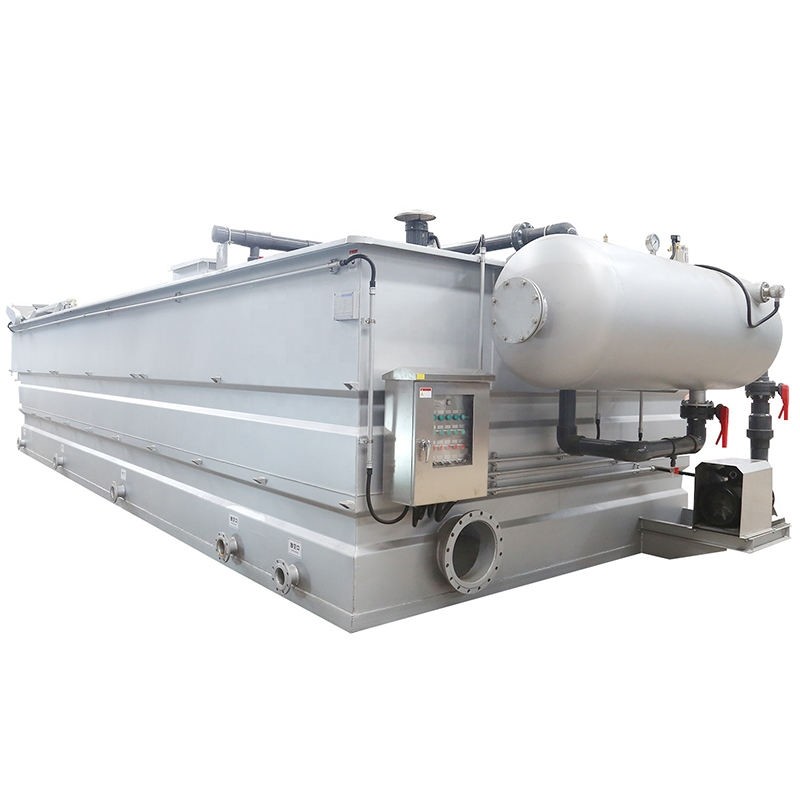

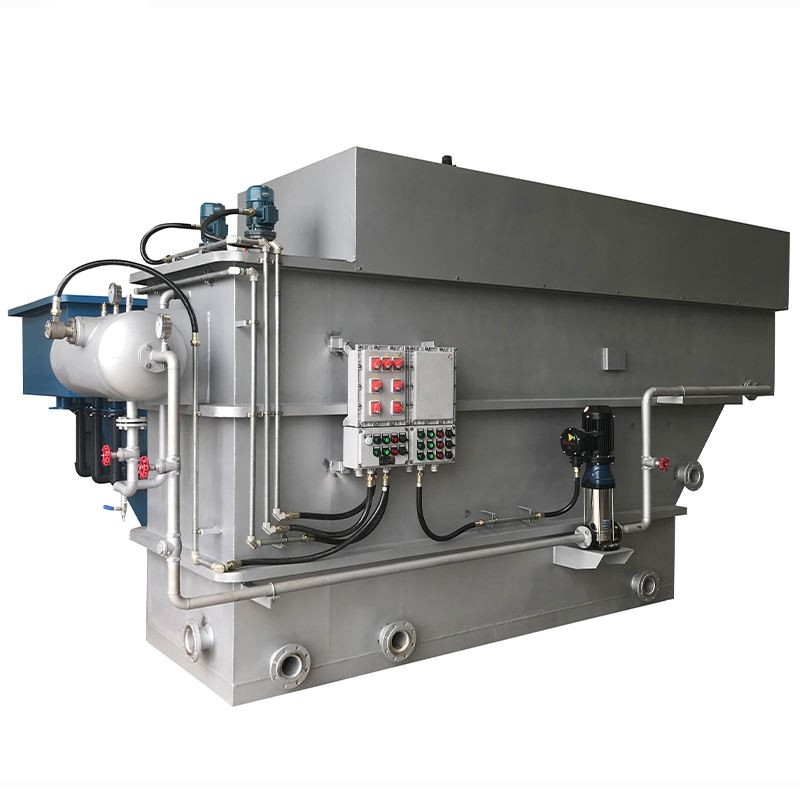

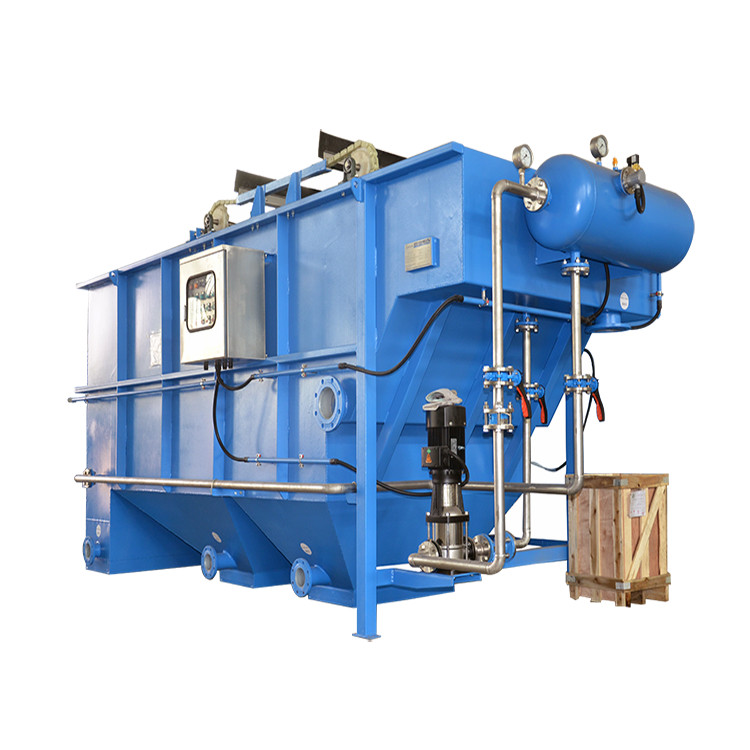

Water Treatment Machinery Dissolved Air Flotation DAF Air Flotation Sewage Treatment Plant

  • Water Treatment Machinery Dissolved Air Flotation DAF Air Flotation Sewage Treatment Plant
  • Water Treatment Machinery Dissolved Air Flotation DAF Air Flotation Sewage Treatment Plant
  • Water Treatment Machinery Dissolved Air Flotation DAF Air Flotation Sewage Treatment Plant
Place of Origin China
Brand Name Yanjiang
Certification CE、ISO
Model Number 01
Minimum Order Quantity Need to negotiate
Price Need to negotiate
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 Sets Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel Or Carbon Steel Weight 1.5-12000KG
Size More Than 1M*1M*2M Power More Than 1.5KW
Name Spunlace Nonwoven Wastewater Treatment Device Dissolved Air Flotation
Highlight

DAF Air Flotation Sewage Treatment Plant

,

Sewage Treatment Plant DAF Air Flotation

,

Water Treatment Machinery DAF Air Flotation
Leave a Message
Product Description

Water Treatment Machinery Dissolved Air Flotation DAF Air Flotation Sewage Treatment Plant



Product description:



New efficient shallow air float



Dissolved Air Flotation is the process of removing grease, oils and other fineSuspended solids and reduces COD and BOD device. the use of air bubble flotation. Air was dissolved into water, the air -saturated water generated from dissolved air micro bubbles attach to the surface of solids,The light of solids(less dense than water)lifting them to the surface.distributed over the whole tank width,make suer optimum phase separation. Mechanical skimmer remove the floating sludge layer and thepurified wastewater discharges to sewer.

Yosun dissolved air flotation solutions provide high-quality, high-capacity, and efficient clarification.



Product Advantages

1.The particle size of microbubbles is 10-30um,and the residence time in water is longer.

2.Surface load up to 10-30m3/(m2.h)compact style to save the space.

3.Gas-water mixing efficiency is higher than 95%.

4.Complete system and easy to install.

5.High integration,efficient and simple operation.

6.Intelligent air suction,more energy saving equipment.

7.Top-in release,realizing non-stop maintenance.

8.Adjustable liquid level system and slag scraping system can control the moisture content of scum.

9.Professional supporting design and suggestions.



DAF Model Capacities (m3/h) Piping Connections() Physical Dimensions(m) Weight (Kg) Operating Weight(kg) Power(kw) Weight KG
Inlet(a) Effluent(b) Sludge(c) Vent(d) L/L1 W/W1 H/H1 Reflux pump Air compressor Skimmer
YJ-002 2 DN50 DN50 DN100 DN100 3.4/2.5 3.4/1.16 2.2/1.7 1300 4000 0.75 0.55 0.2 1200
YJ-003 3 DN50 DN50 DN100 DN100 3.7/2.8 2.4/1.16 2.2/1.7 1500 5000 0.75 0.55 0.2 1300
YJ-005 5 DN80 DN80 DN100 DN80 4/3 2.4/1.16 2.2/1.7 1600 7000 1.1 0.55 0.2 1336
YJ-010 10 DN100 DN100 DN100 DN100 4.65/3.8 2.7/1.36 2.4/1.9 2000 12000 1.5 0.55 0.2 1784
YJ-015 15 DN125 DN100 DN150 DN100 5.6/4.5 2.9/1.66 2.5/2 2200 18000 2.2 0.75 0.2 1904
YJ-020 20 DN150 DN150 DN150 DN100 5.9/4.8 3.2/1.96 2.5/2 3000 22000 3 0.75 0.2 2847
YJ-030 30 DN150 DN150 DN150 DN100 6.8/5.5 3.2/2.16 2.7/2.2 3800 32000 3 0.75 0.4 3642
YJ-040 40 DN200 DN150 DN150 DN100 8/6.7 3.6/2.6 2.7/2.2 5000 45000 5.5 0.75 0.4 4742
YJ-050 50 DN200 DN150 DN150 DN100 8.4/7 3.6/2.6 2.7/2.2 5500 55000 7.5 0.75 0.4 5283
YJ-060 60 DN250 DN200 DN150 DN100 9.9/8.4 3.8/2.8 2.9/2.4 6000 66000 7.5 1.5 0.4 5605
YJ-070 70 DN250 DN200 DN150 DN100 10.4/9 3.8/2.8 2.9/2.4 6500 75000 11 1.5 0.4 6382
YJ-080 80 DN250 DN250 DN150 DN100 10.8/9.4 4/3 2.9/2.4 7500 100000 11 1.5 0.4 7257
YJ-100 100 DN300 DN250 DN150 DN100 12.1/10.6 4.2/3.2 2.9/2.4 9000 110000 15 1.5 0.4 8419
YJ-120 120 DN300 DN250 DN150 DN100 12.5/11.4 4.4/3.4 2.9/2.4 10000 130000 15 1.5 0.4 10000



Water Treatment Machinery Dissolved Air Flotation DAF Air Flotation Sewage Treatment Plant 0Water Treatment Machinery Dissolved Air Flotation DAF Air Flotation Sewage Treatment Plant 1
