xProduct Details
| Warranty Of Core Components | 1 Year | Core Components | Gearbox |
|---|---|---|---|
| Productivity | 10000L/Hour | Weight (KG) | 2500 Kg |
| Material | Steel Bracket | Weight | 1500-10000KG |
| Size | 3.4*2.4*2.2 | Power | 1.5-17kw |
| Highlight | WWTP Wastewater Systems Clarifier,DAF Unit Dissolved Air Flotation,Water Treatment Suppliers Clarifier |
||
Product Description

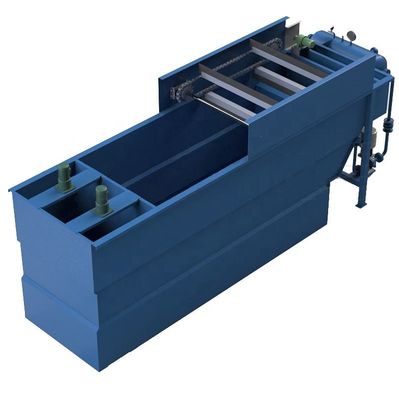

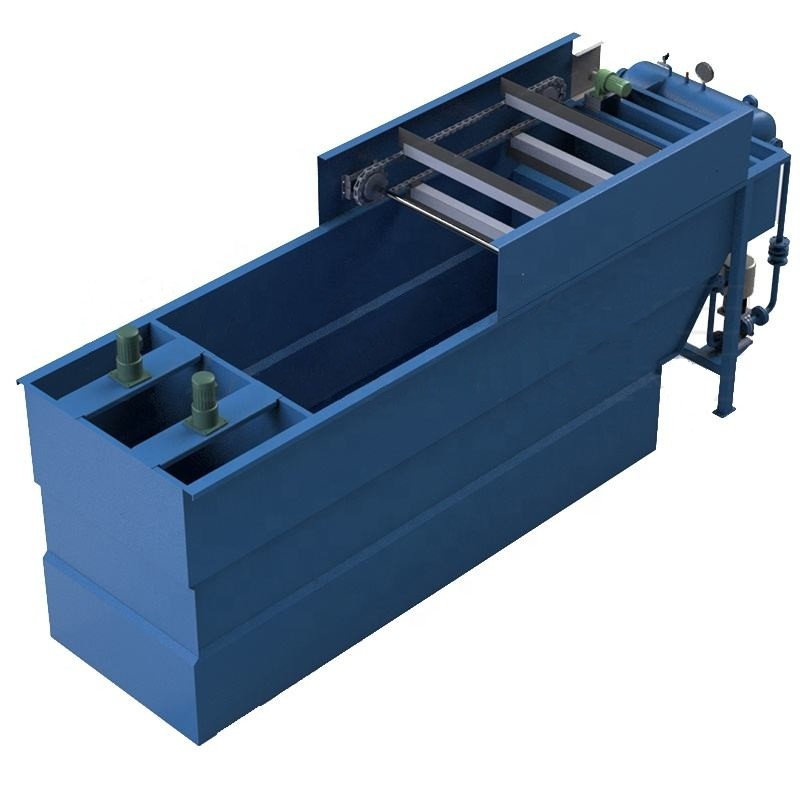

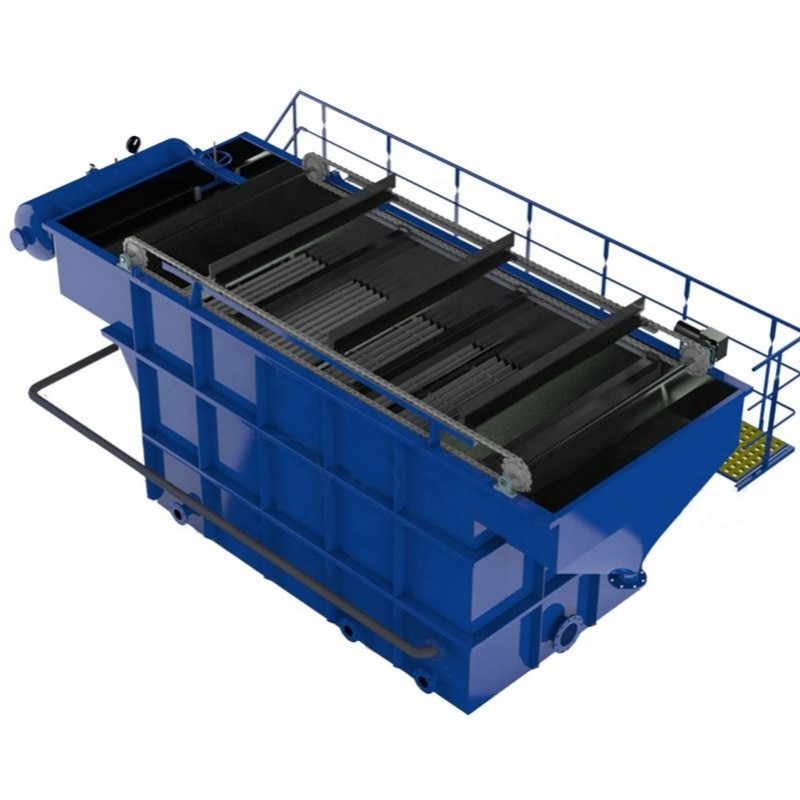

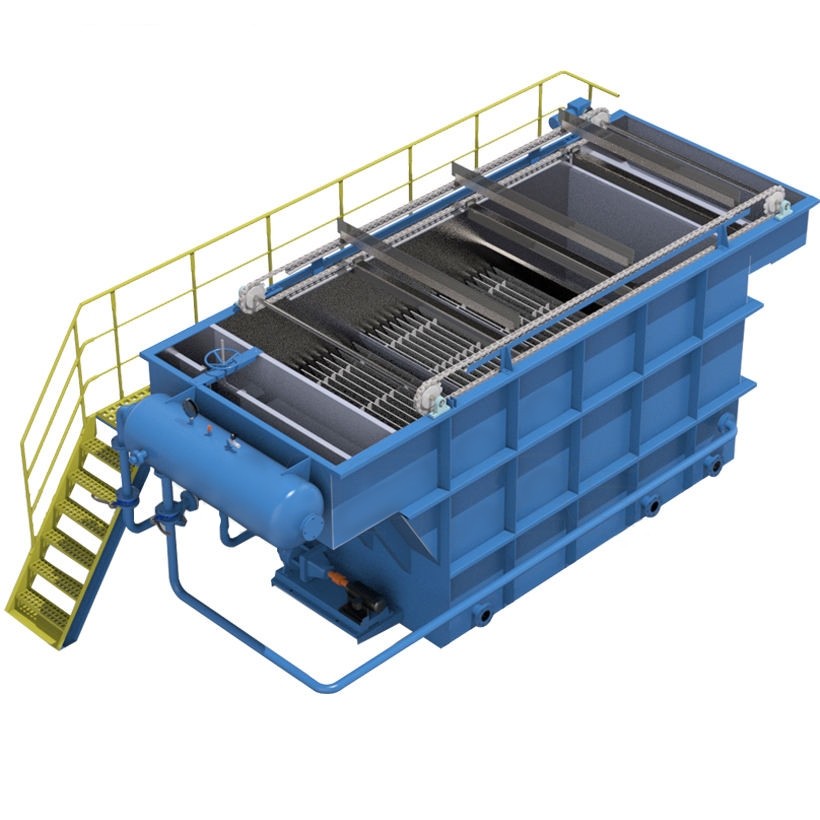

WWTP Wastewater Systems Clarifier Water Treatment Suppliers DAF Unit Dissolved Air Flotation
Product description:
Principle of DAF
The DAF Separator provides effective separation of sus-pended solids, fats, oils and greases from liquids by dissolved air flotation. Flotation of the solids is accom-plished by the introduction of tinny air bubbles into the process water. As the bubbles rise, they attach them-selves to the particales in suspension and carry them to the surface for removed.
Features
1. Customized design, meet variable requirements
2. High-rate clarifier for medium to low SS water (light particles, oil and colloid)3. Fully(100%) manufactured in the factory, and no need secondory welding. It costs 3h for 2 manpower to assemble.
4. Indoor or outdoor layout (environmental temperature should be over 0°C)5.Apply to automatic & continious operation.
Advantage
1.Overall specialized, compact structure, and high performance2. Huge markets ,high maturity, stable performance and reliable operation
3.Hydraulic load: 4~ 12 m3 /(m2h)
4. aximum inlet SS concentration is 10000 mg/L
5.Automatic scum remoual, solid content can be up to 30 ~ 100 mg/L6. Applied for the wastewater with suspended solids & floc density lighter than wateror close tothe water and weak precipitation phenomenon
Our Services
1. Detailed installation manual and maintenance quideline are provided with the equipment2.Technical training and site-commissioning are available for you.3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation,wages will be paid by buyers.
| DAF Model | Qm3/h | Piping Connections | Physical Dimensions(m) | Weight | Operating Weight | |||
| Inlet | Outlet | Sludge | Vent | L/L1 W/W1 H/H1 | (Kg) | (Kg) | ||
| YJ-003 | 3 | DN50 | DN50 | DN100 | DN100 | 3.7/2.8 2.4/1.16 2.2/1.7 | 1500 | 5000 |
| YJ-005 | 5 | DN80 | DN80 | DN100 | DN80 | 4/3 2.4/1.16 2.2/1.7 | 1600 | 7000 |
| YJ-010 | 10 | DN100 | DN100 | DN100 | DN100 | 4.65/3.8 2.7/1.36 2.4/1.9 | 2000 | 12000 |
| YJ-015 | 15 | DN125 | DN100 | DN150 | DN100 | 5.6/4.5 2.9/1.66 2.5/2 | 2200 | 18000 |
| YJ-020 | 20 | DN150 | DN150 | DN150 | DN100 | 5.9/4.8 3.2/1.96 2.5/2 | 3000 | 22000 |
| YJ-030 | 30 | DN150 | DN150 | DN150 | DN100 | 6.8/5.5 3.2/2.16 2.7/2.2 | 3800 | 32000 |
| YJ-040 | 40 | DN200 | DN150 | DN150 | DN100 | 8/6.7 3.6/2.6 2.7/2.2 | 5000 | 45000 |
| YJ-050 | 50 | DN200 | DN150 | DN150 | DN100 | 8.4/7 3.6/2.6 2.7/2.2 | 5500 | 55000 |
| YJ-060 | 60 | DN250 | DN200 | DN150 | DN100 | 9.9/8.4 3.8/2.8 2.9/2.4 | 6000 | 66000 |
| YJ-070 | 70 | DN250 | DN200 | DN150 | DN100 | 10.4/9 3.8/2.8 2.9/2.4 | 6500 | 75000 |
| YJ-080 | 80 | DN250 | DN250 | DN150 | DN100 | 10.8/9.4 4/3 2.9/2.4 | 7500 | 100000 |
| YJ-100 | 100 | DN300 | DN250 | DN150 | DN100 | 12.1/10.6 4.2/3.2 2.9/2.4 | 9000 | 110000 |
| YJ-120 | 120 | DN300 | DN250 | DN150 | DN100 | 12.5/11.4 4.4/3.4 2.9/2.4 | 10000 | 130000 |
