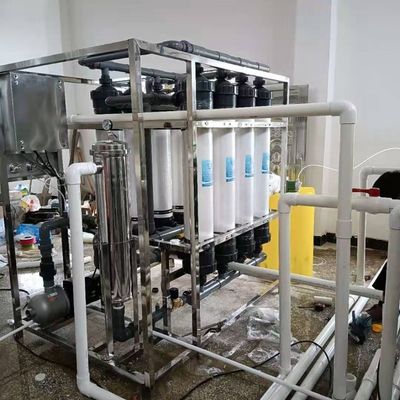

350T Ultrafiltration Industrial Water Purifier Uf Water Purification System Water Treatment Machinery High Efficiency

Place of Origin China
Brand Name Yanjiang
Certification CE、ISO
Model Number 01
Minimum Order Quantity Need to negotiate
Price Need to negotiate
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 Sets Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Marketing Type Ordinary Product Warranty Of Core Components 1 Year
Core Components Pressure Vessel, Gear, Bearing, Motor, PLC Productivity 1000L/Hour
Weight (KG) 1500 Kg Material Wood Box
Weight 1500 Kg Product Name Water Treatment System
Highlight

High Efficiency Industrial Water Purifier

,

350T Ultrafiltration Industrial Water Purifier

,

Uf Water Purification System

Leave a Message
Product Description

350T Ultrafiltration Industrial Water Purifier Uf Water Purification System Water Treatment Machinery High Efficiency



Product description:



Ultrafiltration (UF) equipment is a sophisticated water treatment technology that utilizes semi-permeable membranes with pore sizes ranging from 0.01 to 0.1 microns. This technology falls between microfiltration and nanofiltration in terms of particle size exclusion, enabling it to effectively remove suspended solids, colloids, bacteria, viruses, and certain larger molecules while allowing water, dissolved salts, and smaller molecules to pass through. UF membranes operate under low pressure, typically in the range of 1 to 7 bar, making them energy-efficient and suitable for a wide range of industrial and municipal water treatment applications.



1. One of the defining characteristics of ultrafiltration is its ability to separate particles and dissolved solutes based on their
molecular weight or size. Typically, ultrafiltration membranes have a molecular weight cut-off (MWCO) ranging from 1,000 to
500,000 Daltons, allowing them to retain colloids, bacteria, viruses, proteins, and some larger particles while permitting water,
salts, and smaller molecules to pass through.

2. Due to its fine pore size, ultrafiltration is highly effective in removing microorganisms such as bacteria, protozoa, and some viruses, as well as suspended solids and colloidal particles from liquids. This makes it an excellent choice for producing safe drinking water and ensuring product purity in the food and beverage industry.

3. Compared to other membrane technologies like reverse osmosis, ultrafiltration operates at lower pressures, resulting in reduced energy consumption. This not only makes it cost-effective but also environmentally friendly.

4. Ultrafiltration relies primarily on physical separation rather than chemical reactions, minimizing the need for additives or
pretreatment chemicals. This simplifies the process, reduces operating costs, and eliminates potential chemical residuals in thefinal product.

No Item Specifications and parameters
1 Booster Pump 20m3/h,p=3kw
2 Quartz Sand Filter O1200mm,HEIGHT 2000mm
3 Filler Material Permium Quartz
4 Manganese Sand Filter O1200mm,HEIGHT 2000mm
5 Filler Material Premium Manganese
6 Activated carbon filter O1200mm,HEIGHT 2000mm
7 Bag filter Single bag, 5-micron filtration precision
8 Filler Material Coconut shell activated carbon



350T Ultrafiltration Industrial Water Purifier Uf Water Purification System Water Treatment Machinery High Efficiency 0

Company Information:

Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.



FAQ:

Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
