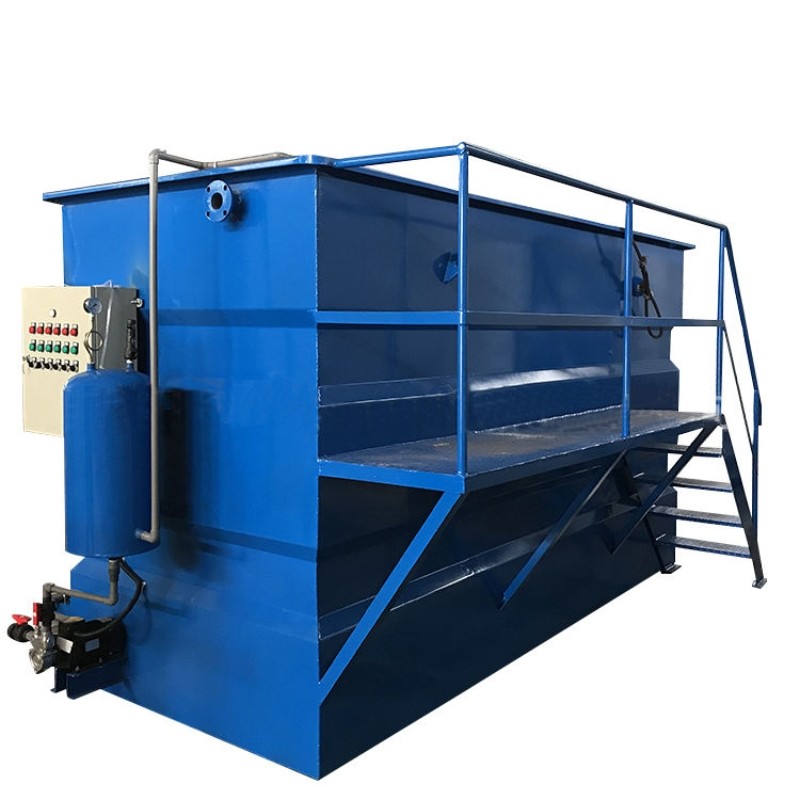

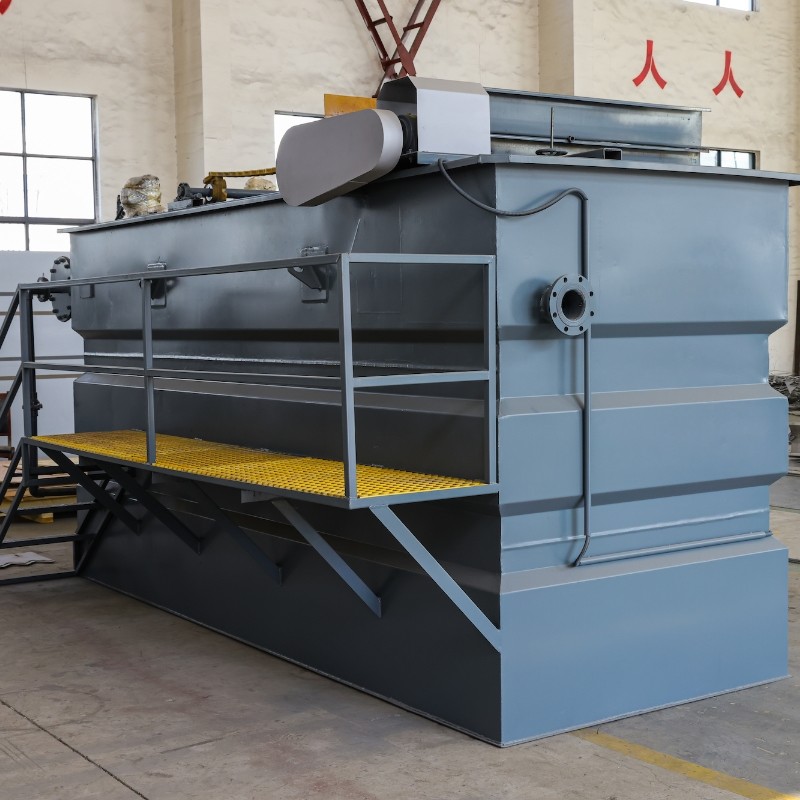

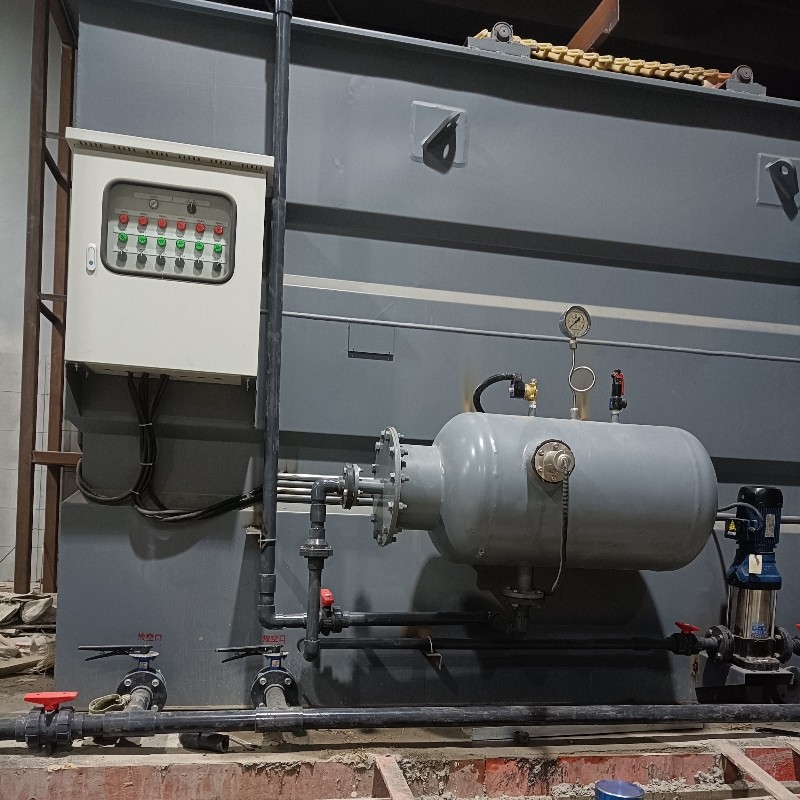

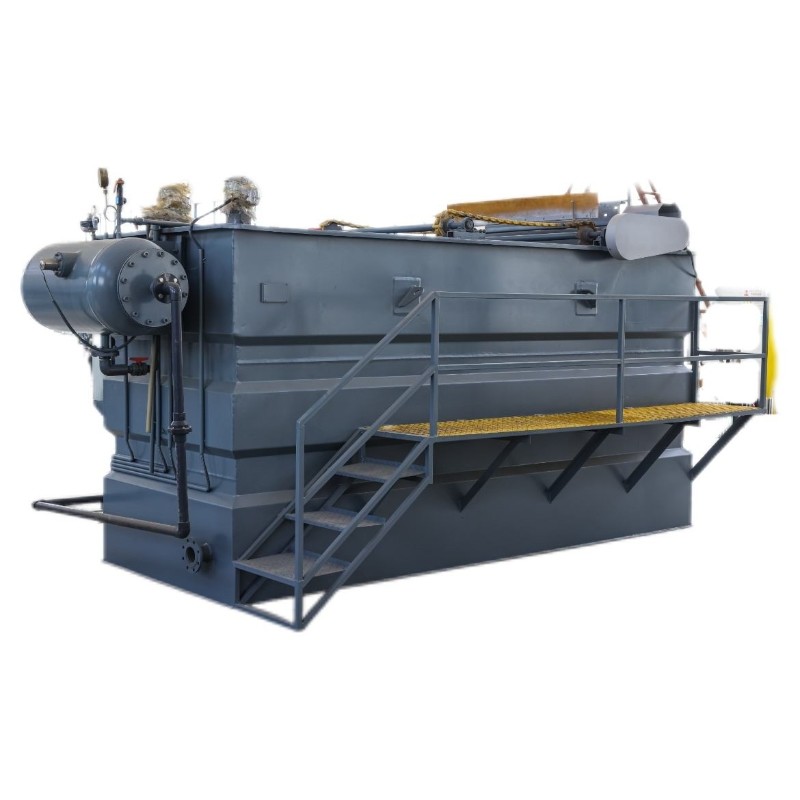

Electro Coagulation Machine Industry Integrated Wastewater Treatment Equipment Daf Dissolved Air Flotation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Components | Gearbox, PLC | Productivity | 1000L/Hour |
|---|---|---|---|
| Weight (KG) | 100 Kg | Power | 0.74 |
| Product Name | Dissolved Air Flotation | Processing Custom | Support |
| Material | SS304 | Delievery Time | After Get The Deposit Within 15 Days |
| Highlight | Electro Coagulation Machine,Daf Dissolved Air Flotation,Integrated Wastewater Treatment Equipment |
||
Product Description
Electro Coagulation Machine Industry Integrated Wastewater Treatment Equipment Daf Dissolved Air Flotation
Product description:
The working principle and application range of the dissolved air flotation device are basically the same as other air flotation devices, but there are significant structural reforms. It has the following advantages:
Equipment integration: Generally, air flotation systems are composed of separate air flotation tanks, dosing equipment, gas tanks, gas pumps, air compressors, and sewage pumps. This results in long installation time, inconvenient management, and a large footprint. YF air flotation combines these separate equipment organically, and generally adjusts the pH value of sewage. As long as the inlet and outlet pipes are connected, they can be immediately put into use. Operation automation: Once YF air flotation is debugged, it can reach an automated and unmanned management state during normal operation.
Working Principle
The working method of the equipment belongs to pressurized dissolved gas floatation, its working principle: under certain conditions, a large amount of air is dissolved in water to form dissolved gas water, as the working medium, through the release of sudden decompression, rapid release, produce a large number of fine bubbles. It is adhered to the "alum flower" in the wastewater after coagulation reaction, so that the floc floats upward, and the scum and oil are scraped by the special scraping device to achieve the purpose of solid-liquid separation.
| specifications(mm) | Φ1 | e | Diameter | ||
| Water Outlet | Water Inlet | Slag Discharge Port | |||
| 5 | 1500 | 1900 | 150 | 150 | 150 |
| 10 | 1800 | 2200 | 150 | 200 | 200 |
| 15 | 2400 | 2800 | 150 | 200 | 200 |
| 20 | 2700 | 3100 | 200 | 225 | 200 |
| 25 | 2900 | 3300 | 200 | 225 | 200 |
| 30 | 3150 | 3550 | 225 | 225 | 200 |
| 40 | 3200 | 3600 | 250 | 250 | 200 |
| 50 | 4200 | 4600 | 250 | 250 | 200 |
| 60 | 5000 | 5400 | 250 | 250 | 200 |
| 80 | 6600 | 7000 | 300 | 300 | 200 |
| 100 | 8300 | 8700 | 300 | 300 | 200 |
|
Remarks: 1. The outlet and slag discharge method is flat method, in accordance with JB/T81-94 standard, p=0.25Pa. 2. The water volume is between 2 specifications The diameter of the air flotation tank can be adjusted Take between two specifications (Φ 1) The values of a and b remain the same for other sizes, e=Φ1+400. |
|||||
Company Information:
Henan Yanjiang Environmental Technology Co., Ltd. as a professional integrated environmental service provider, Committed to the continuous improvement of traditional business and the development of forward-looking business, for the global cities, towns and enterprises, to provide environmental and development of the overall solution and long-term stewardship service, in the field of environmental pollution control and facility operation, sewage treatment, seawater desalination, water purification equipment and water reuse, organic waste comprehensive utilization and biomass energy development and utilization, the environment Business activities are carried out in the fields of restoration, environmental safety management, environmental advisory services and environmental investment and financing management.
FAQ:
Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:How long is your delivery time?
A:Generally it is 15~20 days. Specific time depends on your ordel volume.
Q3:Can l get your products with our logo and design?A:Customized service is available. We provide OEM or ODM by customer's logo
Q4: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
Q5: How about the quality of your products?
A:We have many years of experience in construction machinery manufacturing. All machines are
Manufactured in strict accordance with national and international standards, each equipment is tested before leaving the factory.
